JIS A 5523 Z Shaped Sheet Pile
Japanese Hot Rolled Sheet Piling
Type: U Shaped and Z Shaped Sheet Pile
Material: JIS A 5528 SY295, SY390
JIS A 5523 SYW295, SYW390, SYW430
Popular Model: Type II, Type III, Type Ⅳ,AZ13、AZ18、AZ26
Type: U Shaped and Z Shaped Sheet Pile
Material: JIS A 5528 SY295, SY390
JIS A 5523 SYW295, SYW390, SYW430
Popular Model: Type II, Type III, Type Ⅳ,AZ13、AZ18、AZ26
Product Description
JIS A 5523 Z Shaped Sheet Pile - Premium Steel Foundation Solutions
Looking for reliable foundation solutions that combine strength, efficiency, and versatility? Our JIS A 5523 Z Shaped Sheet Pile delivers exceptional performance for your most demanding construction projects. These premium hot-rolled steel sheet heaps offer prevalent basic keenness and waterproofing capabilities, making them the perfect choice for marine structures, profound unearthings, and surge control frameworks. With progressed fabricating guidelines and demonstrated solidness, you can believe our items to give long-lasting establishment back for your foundation needs.
Products Overview
Our Z-shaped sheet heaps speak to the apex of Japanese designing measures, fabricated to strict JIS determinations. These interlocking steel segments make persistent holding dividers that serve double capacities as both auxiliary back and waterproof barriers.
Key Features:
- Material Standards: JIS A 5523 SYW295, SYW390, SYW430
- Manufacturing Process: Hot-rolled for enhanced strength
- Popular Models: AZ13, AZ18, AZ26
- Surface Treatment: Advanced anti-corrosion coating available
- Installation Method: Vibratory or static pressing
U Sheet Pile Size Chart
| Model | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg/m) | Section Modulus (cm³/m) |
|---|---|---|---|---|---|
| U400 | 400 | 170 | 15.5 | 60.9 | 471 |
| U500 | 500 | 200 | 18.0 | 76.1 | 758 |
| U600 | 600 | 210 | 18.4 | 86.0 | 982 |
Z Sheet Pile Size Chart
| Model | Width (mm) | Height (mm) | Thickness (mm) | Weight (kg/m) | Section Modulus (cm³/m) |
|---|---|---|---|---|---|
| AZ13 | 700 | 430 | 9.5 | 67.0 | 1,890 |
| AZ18 | 700 | 460 | 12.0 | 84.5 | 2,550 |
| AZ26 | 700 | 500 | 14.0 | 102.4 | 3,470 |
Technical Data
Mechanical Properties:
- Yield Strength: 295-430 N/mm² (depending on grade)
- Tensile Strength: 400-510 N/mm²
- Elongation: ≥17%
- Impact Toughness: Excellent low-temperature performance
Performance Characteristics:
- Load-bearing Capacity: High structural strength for deep excavations
- Water Resistance: Continuous interlocking seals prevent seepage
- Corrosion Resistance: Enhanced with protective coatings
- Installation Depth: Suitable for ultra-deep foundations
- Reusability: Can be extracted and reused multiple times

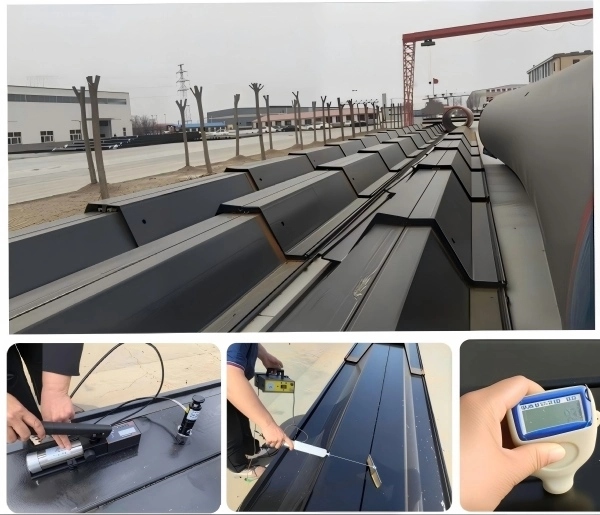

COATING SERVICE
Sheet piles, often made of steel, are key structural components used in retaining walls, flood defenses, and marine projects. However, they face corrosion risks from moisture, soil chemicals, and saltwater, which can weaken them over time. To protect against this, various coatings are applied to the steel surface.
Hot-Dip Galvanization
Epoxy Coatings
Non-Metallic Coatings
Duplex Coating Systems

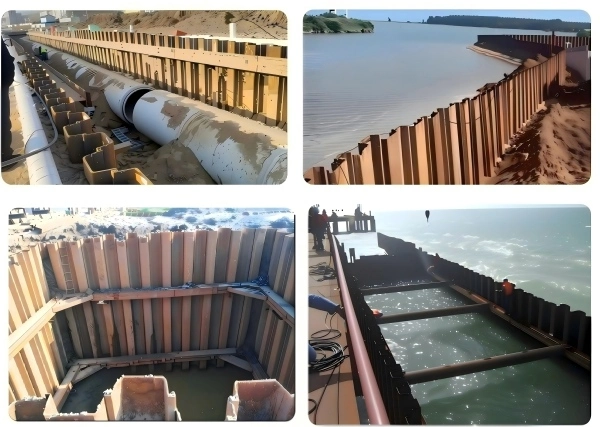

Project Gallery & Applications
Marine Engineering:
Our sheet heaps exceed expectations in harbour development, wharf structures, and coastal security ventures. The predominant erosion resistance and waterproofing capabilities make them idealize for cruel marine environments.
Deep Unearthing Support:
For tram development, cellar unearthings, and underground stopping offices, these heaps give dependable transitory or lasting holding arrangements with great space utilization.
Infrastructure Projects:
Bridge establishments, riverbank security, and surge control frameworks advantage from the fast establishment and prompt basic bolster these heaps provide.
Urban Development:
High-rise building foundations and urban renewal projects utilize our JIS A 5523 Z Shaped Sheet Pile systems for their efficiency and minimal space requirements.
Why Choose Us
Integrated Excellence: As part of Tianjin Xinyue Steel Group, we bring over 40 years of steel manufacturing expertise to every project. Our comprehensive approach covers everything from production to on-site engineering support.
Quality Commitment: Guided by our "BUILD TO THE LAST" philosophy, we ensure each pile meets the highest durability standards. Advanced quality control processes guarantee consistent performance across all products.
Global Reach: With universal workplaces and distribution centers, counting areas in UAE and Dubai, we give speedier conveyance and localized benefit wherever your venture demands.
Customization Capability: Our building group specializes in custom-made arrangements for complex establishment challenges. We adjust our items to meet your particular venture requirements.
Complete Arrangements: Past fabricating, we offer creation, coating, warehousing, and specialized interview administrations, making us your one-stop establishment building partner.
FAQ
Q: What's the contrast between Z-shaped and U-shaped sheet piles?
A: Z-shaped heaps offer higher area modulus and way better basic productivity for more profound unearthings, whereas U-shaped heaps are more appropriate for lighter applications and simpler handling.
Q: How profound can these sheet heaps be installed?
A: Our item frameworks are reasonable for ultra-deep establishments, with profundity capabilities depending on soil conditions and heap details. Our designing group can give particular recommendations.
Q: Can these heaps be reused?
A: Yes, for transitory applications, our sheet heaps can be extricated and reused numerous times, essentially diminishing extend costs.
Q: What establishment strategies do you recommend?
A: We suggest vibratory or inactive squeezing strategies for ideal establishment effectiveness and negligible location disruption.
Q: Do you give worldwide shipping?
A: Completely. We serve worldwide markets with productive coordinations and have abroad distribution centers to guarantee convenient conveyance.
