JIS A 5528 U Shaped Hot Rolled Steel Sheet Pile

JIS A 5528 U Shaped Hot Rolled Steel Sheet Pile - Professional Foundation Solutions

When you need reliable foundation support for deep excavations, marine structures, or retaining walls, JIS A 5528 U Shaped Hot Rolled Steel Sheet Pile delivers exceptional performance. These Japanese standard steel sheet piles combine structural strength with waterproof capabilities. They serve double capacities as load-bearing components and soil maintenance frameworks. Our hot rolled sheet heaps meet JIS A 5528 benchmarks for SY295 and SY390 steel grades, guaranteeing reliable quality for your basic framework projects.​​​​​​​

Products Overview

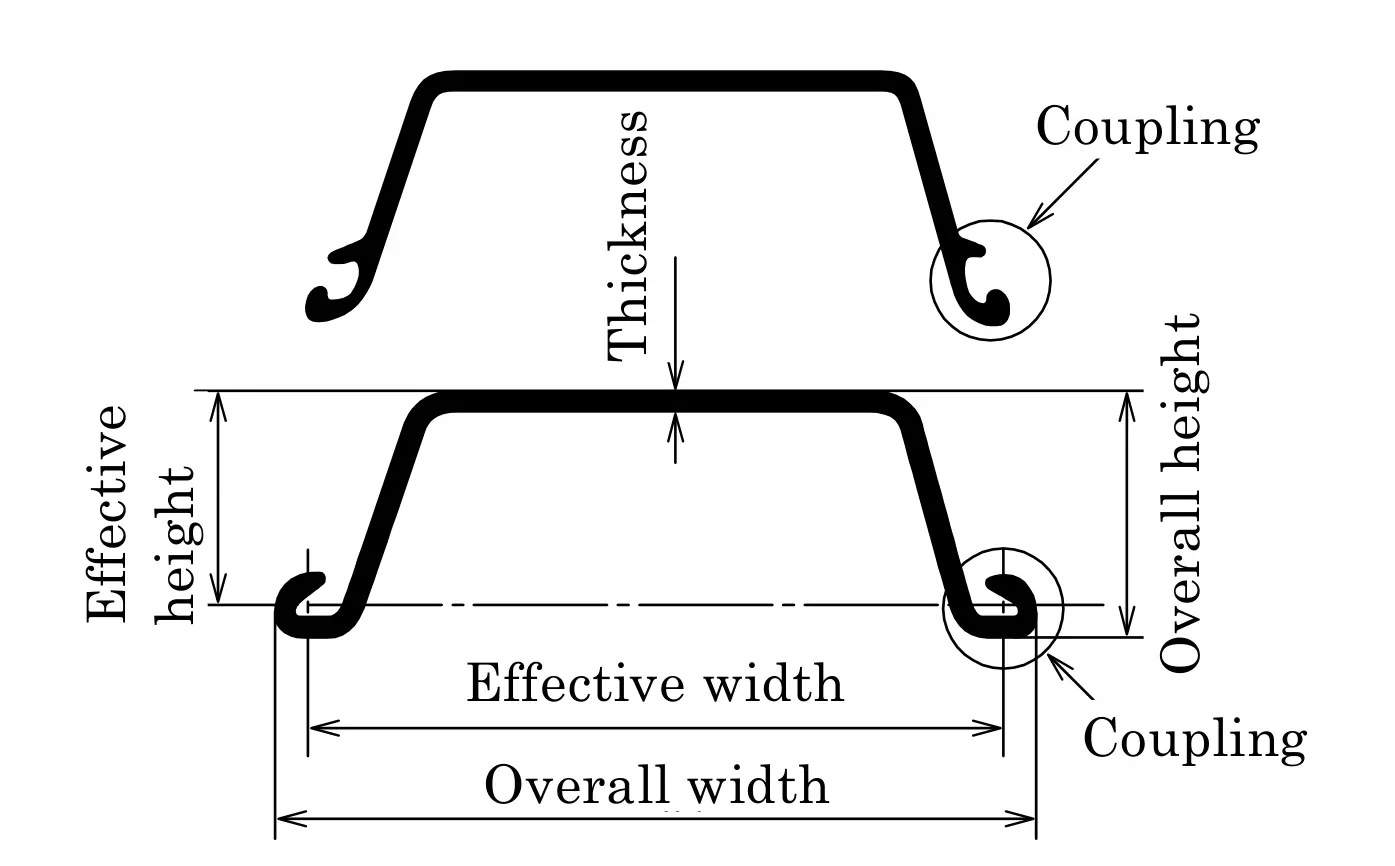

Our hot rolled steel sheet heaps include imaginative interlocking plan that makes ceaseless holding dividers. The U-shaped profile gives ideal area modulus whereas keeping up amazing driving characteristics. Each heap coordinating consistently with adjoining units through precision-engineered clutches.

Available Materials:

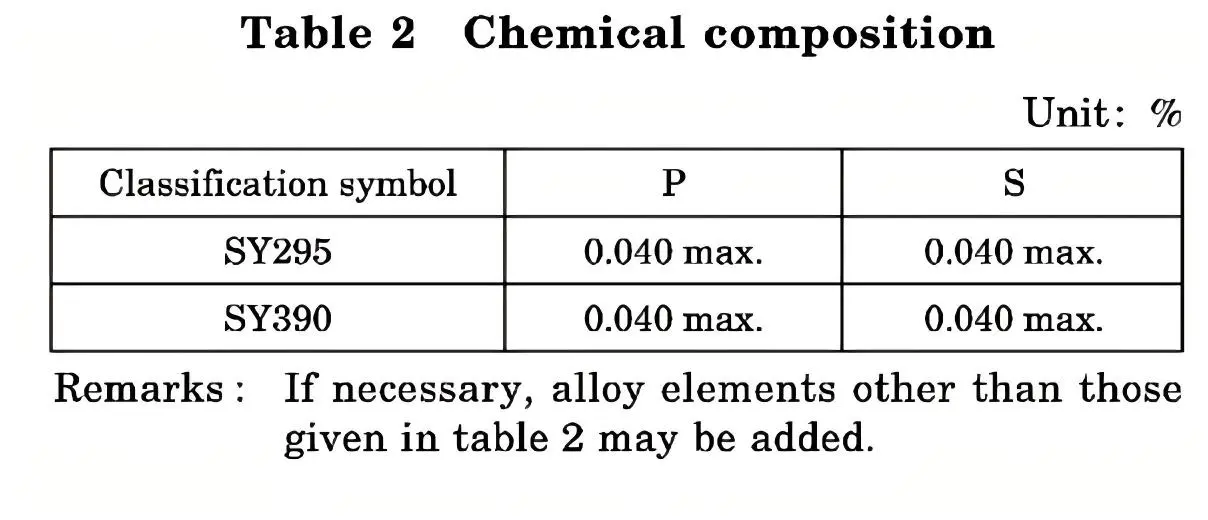

• JIS A 5528: SY295, SY390 grades
• JIS A 5523: SYW295, SYW390, SYW430 grades

Popular Models: Type II, Type III, Type IV, AZ13, AZ18, AZ26

The hot rolling process enhances steel malleability, making these piles easier to drive and adapt to varying soil conditions. This manufacturing method also provides superior cost-effectiveness compared to cold rolled alternatives.

U Sheet Pile Size Chart

Z Sheet Pile Size Chart

Technical Data

Material Properties:

• Yield Strength: 295-430 N/mm² (depending on grade)
• Tensile Strength: 400-520 N/mm²
• Elongation: ≥21%
• Impact Energy: ≥27J at 0°C

Installation Methods:

• Vibratory driving
• Static pressing
• Impact hammering
• Combination methods

The JIS A 5528 U Shaped Hot Rolled Steel Sheet Pile system provides excellent sealing through interlocking connections. This creates effective water cutoff barriers for below-grade construction.

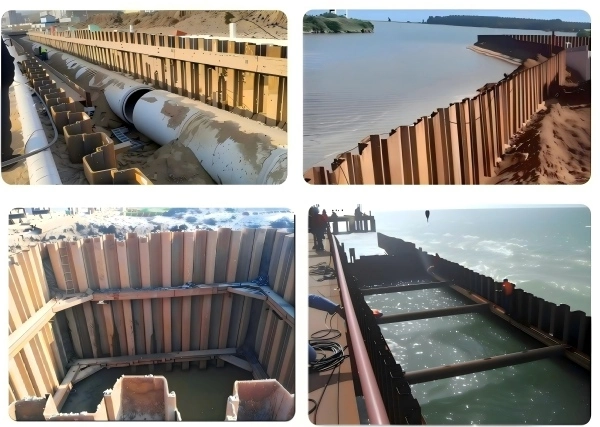

Project Gallery & Applications

Marine & Port Construction

• Wharf structures and bulkheads
• Breakwater foundations
• Harbor protection systems
• Offshore platform support

Urban Development

• Deep basement excavations
• Subway tunnel support
• Underground parking structures
• High-rise building foundations

Infrastructure Projects

• Bridge abutments and piers
• Highway retaining walls
• Railway embankment support
• Airport runway foundations

Water Management

• Flood control barriers
• River channelization
• Stormwater management
• Cofferdam construction

Our sheet piles excel in challenging conditions including soft soils, high water tables, and seismic zones. They provide immediate structural support upon installation without curing time requirements.

Why Choose Us

Integrated Manufacturing Excellence

As a subsidiary of Tianjin Xinyue Steel Group, we leverage 40+ years of steel manufacturing expertise. Our end-to-end capabilities include production, coating, fabrication, and engineering support.

Global Reach & Local Service

With overseas offices in UAE and Dubai, we provide faster delivery and localized support worldwide. Our comprehensive warehousing ensures efficient supply chain management.

Quality Assurance

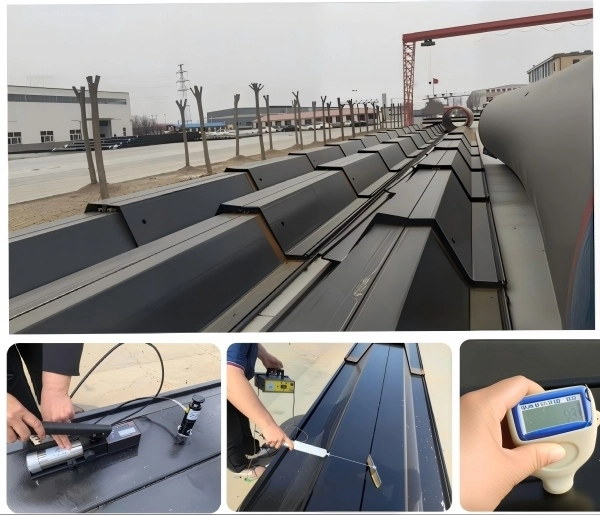

Following our "BUILD TO THE LAST" philosophy, every JIS A 5528 U Shaped Hot Rolled Steel Sheet Pile undergoes rigorous quality control. We maintain strict adherence to Japanese industrial standards.

Customization Capability

Our engineering team designs tailored solutions for complex projects. We offer custom lengths, special coatings, and modified profiles to meet specific requirements.

Competitive Advantages

• Reusable for temporary applications
• High construction efficiency
• Superior space utilization
• Excellent adaptability to site conditions
• Cost-effective long-term performance

FAQ

Q: What's the typical service life of these sheet piles?

A: With proper corrosion protection, our sheet piles can serve 50+ years in standard conditions. Marine applications may require enhanced coating systems.

Q: Can you provide custom lengths?

A: Yes, we manufacture lengths from 6m to 30m based on project requirements. Special lengths available upon request.

Q: How do you ensure interlocking quality?

A: Each clutch undergoes precision machining and dimensional inspection. We guarantee tight sealing performance throughout the wall system.

Q: What delivery timeframes can you offer?

A: Standard products: 3-4 weeks. Custom specifications: 5-6 weeks. Express delivery available through our global warehouse network.

Q: Do you give establishment guidance?​​​​​​​

A: Completely. Our specialized group offers comprehensive back counting driving investigation, establishment strategies, and on-site discussion.

Contact Us

Ready to specify JIS A 5528 U Shaped Hot Rolled Steel Sheet Pile for your next project? Contact our engineering team at sales@hypile.com for technical consultation and competitive pricing. We're here to help you build foundations that last.
