EN 10248-2024 Hot Rolled Z Sheet Piles

EN Standard Hot Rolled Sheet Piling
Standard: EN 10248-2024
Type: U Shaped and Z Shaped Sheet Pile
Material: S240GP ，S270GP, S320GP, S355GP, S390GP, S430GP,S490GP
Send Inquiry
Download
Product Description

EN 10248-2024 Hot Rolled Z Sheet Piles - Professional Foundation Solutions

Looking for reliable and efficient foundation solutions for your construction project? EN 10248-2024 Hot Rolled Z Sheet Piles offer superior structural performance and earth retention capabilities that meet the latest European standards. Our hot rolled steel sheet heaps give remarkable load-bearing capacity whereas serving as an viable waterproof obstruction. Whether you're working on marine structures, profound unearthings, or surge control ventures, these flexible heaping arrangements provide the strength and execution you require for fruitful venture completion.​​​​​​​

Products Overview

Our comprehensive sheet heap arrangements incorporate both U-shaped and Z-shaped profiles made to EN 10248-2024 measures. Each heap highlights precision-engineered interlocking associations that make ceaseless, watertight boundaries. The hot rolling prepare guarantees reliable steel properties and dimensional precision over all sections.

Key features include:

  • Dual functionality as structural support and water barrier
  • High-strength steel grades from S240GP to S490GP
  • Precision interlocking design for seamless installation
  • Optimized cross-sections for maximum efficiency
  • Corrosion protection options available

U Sheet Pile Size Chart

Designation (W)
mm		 (H)
mm		 (t)
   mm		 kg/m kg/m² Moment of
Inertia
(Ix)
cm⁴		 Section Modulus
(W×)
cm³
PU400×100 400  100.0  10.5  48.0  120.1  8740.0  874
PU400×125 400  125.0  13.0  60.00  149.90  16800.0  1340
PU400×150 400  150.0  13.1  58.4  146.0  22800.0  1520
PU400×170 400  170  15.5  76.1  190.4  38600  2270
PU500×200 500  200.0  24.3  105.0  210.0  63000.0  3150
PU500×210 500  210.0  11.5  77.50  155.00  42000.0  2000
PU500×210 500  210.0  15.6  87.5  175.0  52500.0  2500
PU500×210 500  210  20.0  103.0  206.0  63840.0  3040
PU500×225 500  225.0  27.6  120.1  240.2  86000.0  3820
PU600×130 600  130  10.3  61.8  103.0  13000.0  1000
PU600×180 600  180.0  13.4  81.6  136.0  32400.0  1800
PU600×205 600  205.5  10.0  68.80  114.60  31639.0  1540
PU600×205 600  205.5  10.9  76.4  127.4  37348.0  1817
PU600×205 600  204.7  9.4  69.20  115.3  32858.0  1605
PU600×205 600  205.0  10.0  72.1  120.1  34645.0  1690
PU600×210 600  209.7  11.6  78.8  131.40  40261.0  1920
PU600×210 600  210.0  12.2  81.60  136.0  42105.0  2005
PU600×210 600  210.0  18.0  106.2  177.0  56700  2700
PU600×210 600  210.5  13.2  86.30  143.8  45180  2146
PU600×215 600  215.0  12.5  82.4  137.4  45870.0  2134
PU600×215 600  215.0  13.0  84.70  141.1  47380.0  2204

Z Sheet Pile Size Chart

Designation (W)
mm		 (H)
mm		 (t)
   mm		 (s)
   mm		 Per pile Per Meter
Sectional Area
cm²		 kg/m Moment of
Inertia
(Ix)
cm⁴		 Section Modulus
(W×)
cm³		 Sectional Area
cm²		 kg/m² Moment of
Inertia
(Ix)
cm⁴		 Section Modulus
(W×)
cm³
PZ12-700 700  312.5  8.6  8.5  86.1  67.6  13183  843  123.1  96.6  18833  1205
PZ12-770 770  343.5  8.6  8.5  92.72  72.8  16550  960  120.42  94.5  21496  1252
PZ13-700 700  313.5  9.6  9.5  94.2  73.9  14346  915  134.6  105.6  20494  1307
PZ13-770 770  344  9.1  9.0  97.1  76.2  17270  1010  126.1  99  22433  1304
PZ14-700 700  314.5  10.6  10.5  102.3  80.3  15510  985  146.1  114.7  22156  1409
PZ14-770 770  344.5  9.6  9.5  101.45  79.6  18000  1050  131.75  103.4  23370  1357
PZ17-700 700  419.5  8.5  8.5  93.3  73.2  25413  1209  133.2  104.6  36304  1731
PZ18-700 700  420  9.0  9.0  97.7  76.7  26526  1261  139.5  109.5  37894  1804
PZ19-700 700  420.5  9.5  9.5  102.1  80.1  27640  1313  145.9  114.5  39485  1878
PZ20-700 700  421  10.0  10.0  106.5  83.6  28754  1366  152.2  119.4  41076  1951
PZ24A-700 700  439.0  11.0  11.0  121.2  95.1  37365  1701  173.1  135.9  53379  2432
PZ24-700 700  459.2  11.3  11.2  122.06  95.8  39170  1710  174.37  136.9  55949  2437
PZ26A-700 700  440.0  12.0  12.0  130.6  102.5  40130  1824  186.6  146.5  57329  2606
PZ26-700 700  460.2  12.3  12.2  131.18  103  41890  1820  187.4  147.1  59843  2601
PZ28A-700 700  441.0  13.0  13.0  140.0  109.9  42896  1945  200.0  157.0  61279  2779
PZ28-700 700  461.2  13.3  13.2  140.3  110.1  44620  1940  200.43  157.3  63740  2764
PZ30-750 750  510.2  13.1  11.0  139.04  109.1  57780  2270  198.6  155.9  77038  3020
PZ32-750 750  511.2  14.1  12.0  148.9  116.9  61490  2410  212.7  167  81993  3208
PZ34-750 750  512.2  15.1  13.0  158.77  124.6  65210  2550  226.8  178  86952  3395
PZ36A-700 700  499.0  17.0  11.0  150.5  118.1  62878  2515  215.0  168.8  89826  3600
PZ36-700 700  499.2  15.1  11.2  151.27  118.7  62830  2520  216.1  169.6  89753  3596
PZ38A-700 700  500.0  18.0  12.0  160.4  125.9  66503  2654  229.2  179.9  95004  3800
PZ38-700 700  500.2  16.1  12.2  161.16  126.5  66490  2660  230.23  180.7  94984  3798
PZ40A-700 700  501.0  19.0  13.0  170.3  133.7  70128  2792  243.3  191.0  100184  3999
PZ40-700 700  501.2  17.1  13.2  171.06  134.3  70150  2800  244.37  191.8  100219  3999
PZ42-700 700  499.2  18.1  14.0  182.12  143  73880  2960  260.17  204.2  105543  4228
PZ44-700 700  500.2  19.1  15.0  192.02  150.7  77660  3110  274.31  215.3  110942  4436
PZ46-700 700  501.2  20.1  16.0  201.93  158.5  81310  3250  288.47  226.5  116159  4635
PZ48-700 700  503.2  22.1  15.0  202.99  159.3  84330  3350  289.99  227.6  120467  4788
PZ50-700 700  504.2  23.1  16.0  212.41  166.7  87750  3480  303.44  238.2  125358  4973
PZ52-700 700  505.2  24.1  17.0  222.07  174.3  91280  3610  317.24  249  130403  5162

Technical Data

Our EN 10248-2024 Hot Rolled Z Sheet Piles are manufactured using premium steel grades that ensure optimal performance across diverse applications:

Steel Grade Yield Strength (N/mm²) Tensile Strength (N/mm²) Elongation (%) Carbon Content (%)
S240GP 240 340-470 ≥26 ≤0.17
S270GP 270 410-540 ≥24 ≤0.20
S320GP 320 470-610 ≥22 ≤0.24
S355GP 355 510-680 ≥20 ≤0.27
S430GP 430 570-750 ≥18 ≤0.32

The manufacturing process follows strict quality control protocols. Each pile undergoes dimensional inspection and mechanical property testing. Surface quality meets EN 10163-3 standards for structural steelwork applications.

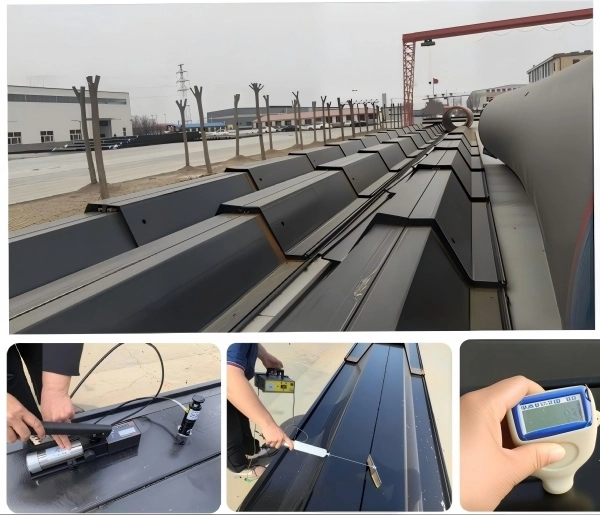

COATING SERVICE




COATING SERVICE

Sheet piles, often made of steel, are key structural components used in retaining walls, flood defenses, and marine projects. However, they face corrosion risks from moisture, soil chemicals, and saltwater, which can weaken them over time. To protect against this, various coatings are applied to the steel surface.

Corrosion Protection Options:

· Hot-dip galvanizing

· Epoxy coating

· Bitumen coating

· Marine-grade treatments​​​​​​​

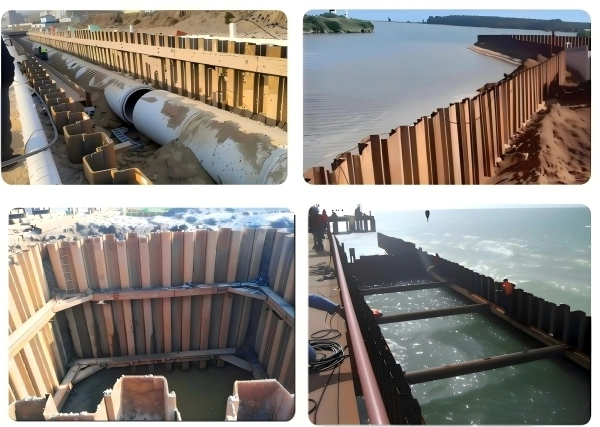

Project Gallery & Applications

Sheet piles excel in numerous construction scenarios where you need reliable earth retention and water control. Common applications include:

SHEET PILES

Marine & Coastal Projects

  • Port and wharf construction
  • Seawall and breakwater systems
  • Marina development
  • Riverbank protection works

Urban Infrastructure

  • Deep basement excavations
  • Subway and tunnel construction
  • Underground parking structures
  • Utility corridor protection

Industrial & Commercial

  • Warehouse foundation systems
  • Manufacturing facility expansions
  • Waste containment structures
  • Bridge abutment construction

The versatility of these piling systems, including EN 10248-2024 Hot Rolled Z Sheet Piles, makes them suitable for both permanent and temporary installations. Their reusable nature provides significant cost savings for contractors working on multiple projects.

Why Choose Us

Tianjin Hypile Foundation Engineering brings over four decades of steel manufacturing expertise to every project. Our integrated approach covers everything from material production to on-site engineering support.

Quality Assurance

We follow our "BUILD TO THE LAST" philosophy, ensuring every product meets stringent quality standards. Our manufacturing facilities utilize advanced quality control systems that monitor each production stage.

Technical Support

Our engineering team provides comprehensive project assistance, including design optimization, installation guidance, and performance calculations. We work closely with your project team to ensure successful implementation.

Global Reach

With international offices and strategically located warehouses, we deliver materials efficiently worldwide. Our overseas presence enables faster response times and localized service support.

Customization Capabilities

Beyond standard profiles, we offer custom creation administrations for interesting venture prerequisites. Our building group can create specialized arrangements for challenging location conditions.

FAQ

Q: What's the distinction between U-shaped and Z-shaped sheet piles?

A: U-shaped heaps offer fabulous area modulus for direct loads, whereas Z-shaped profiles give higher basic capacity and are favored for heavy-duty applications requiring most extreme bowing resistance.

Q: Can these piles be reused after installation?

A: Yes, our products are designed for multiple use cycles. Proper extraction techniques allow reuse in subsequent projects, making them cost-effective for temporary works.

Q: What installation methods are recommended?

A: Installation typically involves vibratory driving or static pressing equipment. The method selection depends on soil conditions, project requirements, and noise restrictions. Our technical team can recommend optimal installation approaches.

Q: How do you guarantee water-tight connections?​​​​​​​

A: The precision-manufactured interlocks make successful fixing when legitimately introduced. Extra sealants can be connected if improved water-tightness is required for particular applications.

Q: What surface medications are available?

A: We offer different erosion assurance choices counting hot-dip galvanizing and specialized coatings for marine situations. Treatment determination depends on presentation conditions and benefit life necessities.
