Cold Formed U Type Sheet Pile

GB Standard Cold Formed Sheet Piling
Standard: GB/T 29654-2013
Type: U Shaped and Z Shaped Sheet Pile
Material: Q295P, Q355P, Q390P, Q420P, Q460P
Send Inquiry
Download
Product Description

Cold Formed U Type Sheet Pile - Professional Foundation Solutions

When you need reliable retaining wall solutions for your construction project, Cold Formed U Type Sheet Pile offers the perfect combination of structural strength and installation efficiency.

Our cold-formed U-type sheet heaps are made concurring to  GB/T 29654-2013 measures, giving you with uncommon double usefulness for both soil maintenance and load-bearing applications. Whether you're working on profound unearthings, marine structures, or surge control ventures, these flexible heaping arrangements provide long-lasting execution you can trust.​​​​​​​

Products Overview

Our item frameworks are designed utilizing high-grade steel materials counting Q295P, Q355P, Q390P, Q420P, and Q460P. These lightweight however strong sheet heaps include interlocking associations that make ceaseless, waterproof obstructions whereas keeping up predominant auxiliary integrity.

You'll advantage from their fabulous space utilization and versatility to complex geotechnical conditions. The thin-walled cross-section plan maximizes your usable uncovering space whereas giving proportionate solidness to thicker choices. For brief applications, these sheet heaps offer extraordinary reusability, altogether lessening your generally extend costs.

U Sheet Pile Size Chart

Designation

 Dimensions Mass Moment of inertia Modulus of Section
Width Height Thickness Per pile Wall
B H t
mm mm mm kg/m kg/m2 cm4/m cm3/m
CRP-U-296 350 140 8 37.4 106.9 2073 296
CRP-U-323 350 145 9 40.6 116 2263 323
CRP-U-351 350 150 10 45.6 130.3 2460 351
CRP-U-529 400 170 8 35.5 89 4500 529
CRP-U-880 400 240 9.2 43.2 108 10600 880
CRP-U-626 450 240 8 48.1 106.9 7516 626
CRP-U-698 450 240 10 58.9 130.9 8379 698
CRP-U-785 450 240 12 71 157.8 9420 785


Z Sheet Pile Size Chart

Designation Dimensions Mass Moment of inertia Modulus of Section
Width Height Thickness Per pile Wall
B H t
mm mm mm kg/m kg/m2 cm4/m cm3/m
CRP-Z-1341 700 319.5 9.5 73.5 105 21425 1341
CRP-Z-983 700 350 5 42 60 17208 983
CRP-Z-1326 700 416.5 6.5 54.7 78.1 27616 1326
CRP-Z-1423 700 417 7 58.8 84 29671 1423
CRP-Z-1519 700 417.5 7.5 62.9 89.8 31715 1519
CRP-Z-1661 700 418 8 69.1 98.7 34706 1661
CRP-Z-1756 700 418.5 8.5 73.2 104.7 36793 1756
CRP-Z-1855 700 419 9 77.4 110.6 38871 1855

Technical Data

Our sheet piles are manufactured using premium steel grades that ensure optimal performance across various applications:

  • Material Standards: Q295P, Q355P, Q390P, Q420P, Q460P
  • Manufacturing Standard: GB/T 29654-2013
  • Yield Strength: 295-460 MPa (depending on grade)
  • Installation Method: Vibratory hammering or static pressing
  • Interlock Design: Continuous watertight seal
  • Corrosion Protection: Hot-dip galvanizing available

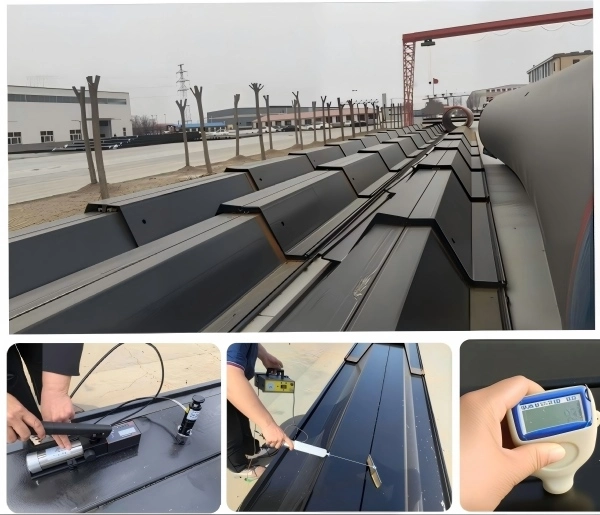

COATING




COATING SERVICE

Sheet piles, often made of steel, are key structural components used in retaining walls, flood defenses, and marine projects. However, they face corrosion risks from moisture, soil chemicals, and saltwater, which can weaken them over time. To protect against this, various coatings are applied to the steel surface.

Corrosion Protection Options:

· Hot-dip galvanizing

· Epoxy coating

· Bitumen coating

· Marine-grade treatments

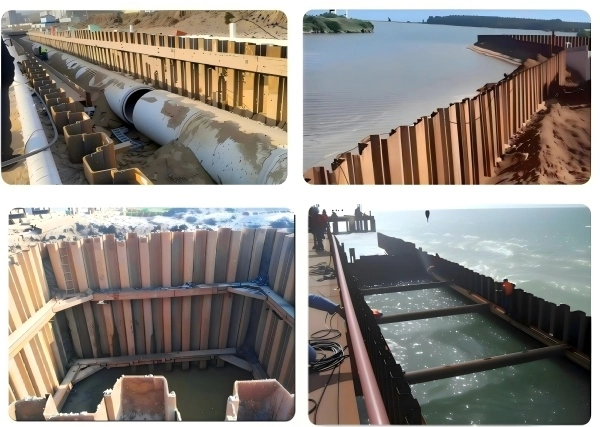

Project Gallery & Applications

SHEET PILE

Your ventures can advantage from our sheet heap arrangements over different sectors:​​​​​​​

Marine & Harbour Development: Idealize for wharf structures, seawalls, and harbor establishments where you require both auxiliary back and water retention.

Deep Exhuming Back: Perfect for cellar development, underground stopping offices, and metro ventures requiring dependable soil retention.

Flood Control Frameworks: Amazing choice for riverbank security, levee development, and transitory surge barriers.

Infrastructure Improvement: Appropriate for bridge projections, burrow approaches, and thruway holding walls.

Why Choose Us

At Tianjin Hypile Foundation Engineering Co., Ltd., we bring over 40 years of steel manufacturing expertise to every project. You'll receive integrated turnkey solutions from material supply to on-site engineering support.

Our "BUILD TO THE LAST" philosophy ensures your Cold Formed U Type Sheet Pile systems deliver exceptional durability and performance. We offer comprehensive customization capabilities, advanced surface treatments, and global supply chain support through our international offices and warehouses.

You can tally on our specialized group for designing discussion, establishment direction, and continuous extend bolster. Our commitment to quality and advancement makes us your trusted accomplice for establishment designing solutions.​​​​​​​

FAQ

Q: What's the contrast between U-type and Z-type sheet piles?

A: U-type heaps offer easier establishment and are perfect for straight dividers, whereas Z-type heaps give higher segment modulus and superior execution for heavy-duty applications.

Q: Can these sheet piles be reused?

A: Yes, for temporary installations, our product systems can be extracted and reused multiple times, significantly reducing your project costs.

Q: What installation equipment do I need?

A: Standard vibratory hammers or static pressing equipment work effectively. We can provide equipment recommendations based on your soil conditions.

Q: How do you ensure watertight connections?

A: Our interlocking design creates continuous seals between adjacent piles. Additional sealants can be applied for enhanced water-tightness in critical applications.

Contact Us

Ready to discuss your foundation engineering needs, including Cold Formed U Type Sheet Pile? Contact our technical team at sales@hypile.com for customized solutions and project consultation.
