JIS A 5523 U Shaped Sheet Pile

JIS A 5523 U Shaped Sheet Pile - High-Performance Foundation Solutions

When you're looking for reliable foundation solutions for your next construction project, JIS A 5523 U Shaped Sheet Pile delivers exceptional performance and versatility. These Japanese hot-rolled steel sheet heaps are designed to meet the most requesting auxiliary necessities whereas giving predominant soil maintenance capabilities. Our comprehensive extend incorporates both U-shaped and Z-shaped setups, made from premium materials like SYW295, SYW390, and SYW430 grades to guarantee long-lasting durability.​​​​​​​

Products Overview

Our sheet heap portfolio offers you the idealize adjust of basic keenness and commonsense usefulness. Each heap highlights an imaginative interlocking plan that makes nonstop, waterproof obstructions for your development needs. Whether you're working on marine structures, profound unearthings, or surge control ventures, these heaps provide reliable execution over different applications.

The double usefulness sets our items separated from conventional arrangements. You get both load-bearing capacity and soil maintenance in a single framework, streamlining your development handle and decreasing in general extend complexity.

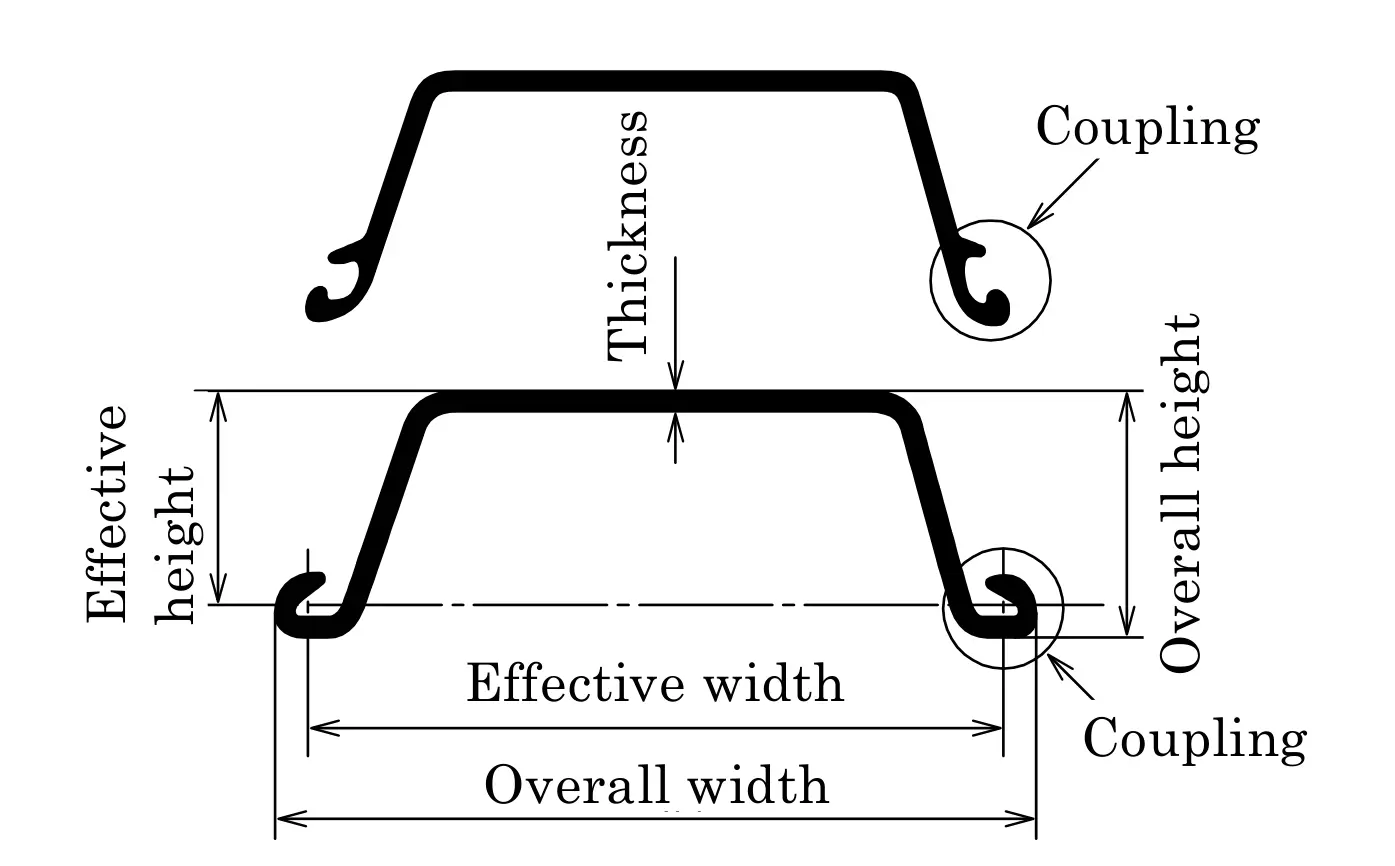

U Sheet Pile Size Chart

Technical Data

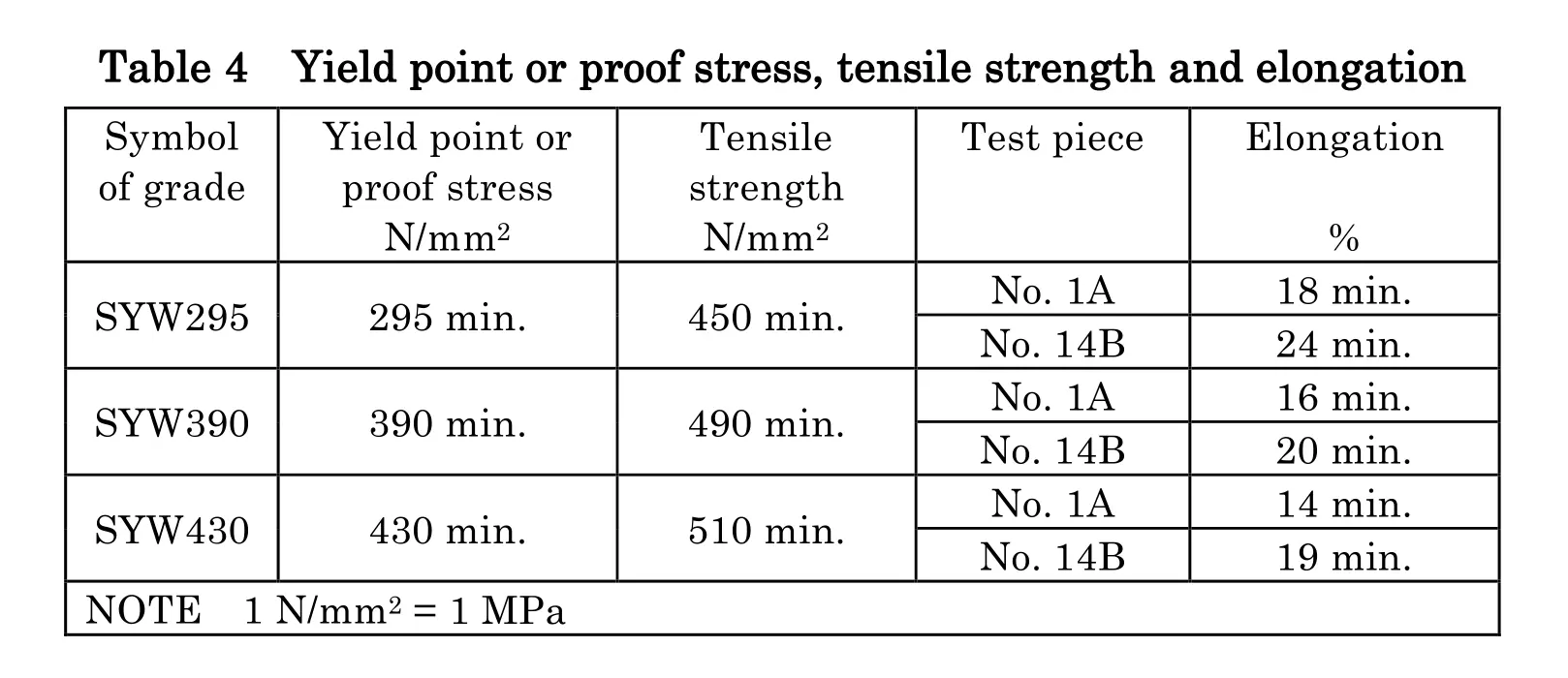

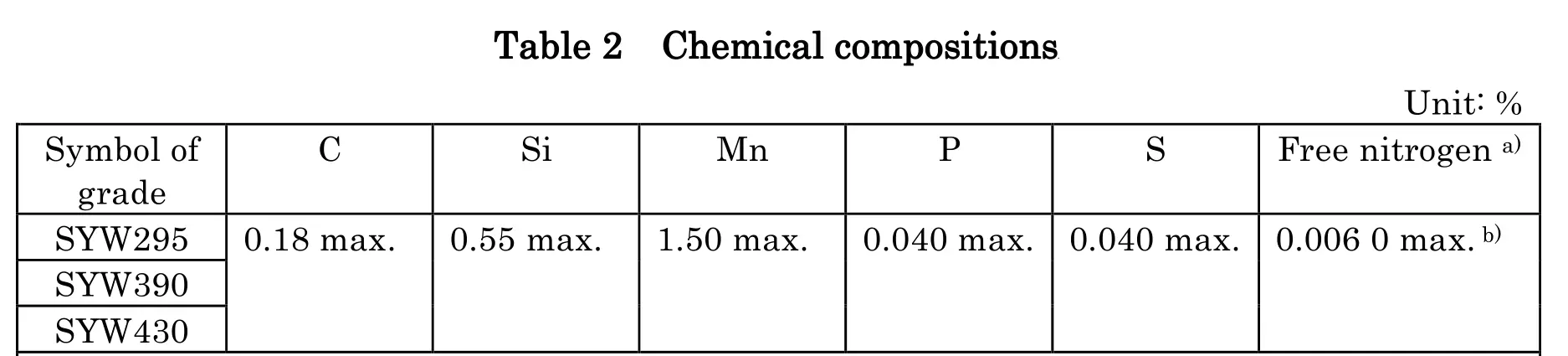

Material Standards:

• JIS A 5528: SY295, SY390
• JIS A 5523: SYW295, SYW390, SYW430

Key Performance Features:

• Yield Strength: 295-430 N/mm²
• Excellent corrosion resistance with optional coating treatments
• Temperature resistance: -40°C to +80°C
• Waterproof interlocking connections
• High load-bearing capacity up to 500 kN/m

Installation Methods:

• Vibratory hammer driving
• Static pressing
• Impact driving
• Pre-drilling for difficult conditions

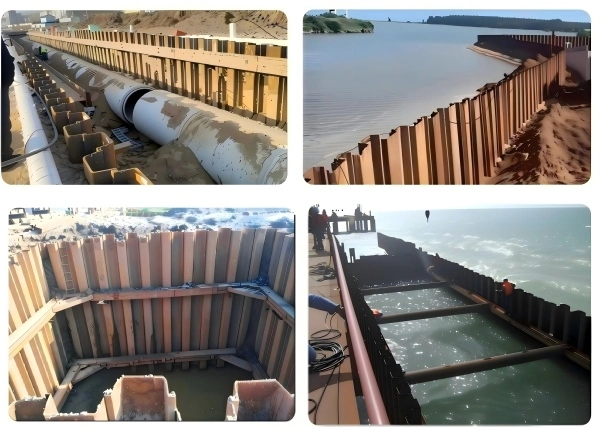

Applications

Our JIS A 5523 U Shaped Sheet Pile systems excel in numerous construction scenarios:

Marine Development: Harbour offices, wharf structures, and coastal security ventures advantage from prevalent erosion resistance and waterproofing capabilities.

Urban Improvement: Profound storm cellar unearthings, tram development, and underground stopping offices depend on our heaps for secure, proficient soil retention.

Infrastructure Ventures: Bridge establishments, street development, and utility establishments utilize our arrangements for solid ground support.

Flood Control: Stream dikes, levees, and water administration frameworks depend on our waterproof obstruction technology.

Why Select Us

Integrated Turnkey Arrangements: We give total end-to-end administrations from fabricating to establishment bolster, guaranteeing consistent venture execution for your particular requirements.

Proven Industry Experience: Backed by Tianjin Xinyue Steel Group's 40+ years of steel manufacturing expertise, we bring unmatched knowledge to every project you undertake.

Customization Capability: Our building group works closely with you to create custom fitted arrangements that meet your interesting venture determinations and challenging location conditions.​​​​​​​

Global Bolster Organize: With abroad workplaces and warehousing offices, we provide quick, localized benefit wherever your ventures take you.

Quality Assurance: Our "BUILD TO THE LAST" philosophy ensures every pile meets the highest standards for long-term structural integrity and performance.

FAQ

Q: What makes the product different from other retaining solutions?

A: These piles combine structural support and waterproofing in one system. You get faster installation, better space utilization, and the ability to reuse them for temporary works.

Q: Can these piles be reused?

A: Yes, for temporary applications, our sheet piles can be extracted and reused multiple times, significantly reducing your project costs.

Q: What installation equipment do I need?

A: Most projects use vibratory hammers or static pressing equipment. We can provide guidance on the best installation method for your soil conditions.

Q: How deep can these piles be installed?

A: Our sheet piles are suitable for ultra-deep excavations. The exact depth depends on soil conditions and project requirements. Contact our engineering team for specific recommendations.

Q: Do you provide coating services?

A: Yes, we offer advanced anti-corrosion coating and galvanizing treatments to extend service life in harsh environments.

Contact Us

Ready to discuss your foundation engineering needs, including JIS A 5523 U Shaped Sheet Pile? Contact our expert team at sales@hypile.com for personalized solutions and technical support.
