Excavation Support Techniques: The Role of Interlocking Steel Sheet Piles

Excavation support methods are essential for safe building in difficult soil conditions. For difficult projects, linked steel sheet piles have proven to be the most reliable option. Sheet pile shoring systems have changed the way engineers work in deep holes because they offer the best structural stability and water protection. These designed steel profiles make continuous barrier walls that spread out side earth forces well and keep the stability of the dig. Modern sheet pile systems work better than traditional shoring methods because they use advanced connecting mechanisms. This makes them essential for building projects that need to meet high safety standards and last a long time.

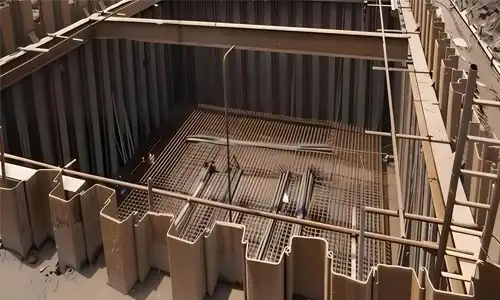

Understanding Interlocking Steel Sheet Piles in Excavation Support

Steel sheet piles that fit together tightly are specialized structural elements that are made to handle high side loads during mining work. The basic idea behind engineering is to make walls that are continuous by using carefully made sliding parts that spread loads across the whole system instead of putting stress on a few points.

Engineering Principles Behind Interlocking Systems

The connecting system makes a single barrier that spreads the earth and water forces evenly across the wall surface. Each pile section has carefully designed edges that fit together with neighboring sections to make watertight seals that are needed to control groundwater. Because these links are continuous, they don't have any weak spots like split shoring systems do.

Modern interlocking designs use advanced metalworking and precise production to make sure they work the same way in all kinds of soil. The steel shapes are made with specific section moduli that give them the best bending moment capacity while using the least amount of material. This way of building leads to low-cost methods that keep structures strong even when they're under a lot of stress.

Material Specifications and Profile Variations

Modern interlocking steel sheet piles come in a lot of different high-strength steel pieces and shapes, each one designed to work best in a certain situation and hold a certain amount of weight. For digs of a middling depth, U-type shapes are great at keeping the dirt in place, while Z-type designs are better for deeper jobs that need more bending resistance.

High-strength steel types ranging from S355 to S460 are usually included in the material requirements. This makes sure that the yield strength is good enough for tough jobs. Protective coats, such as hot-dip galvanizing and specific polymer systems, make things last a lot longer and require less upkeep. These high-tech materials come in a range of lengths and connecting systems that make the design more flexible. This lets engineers make solutions that fit the needs of each project.

Evolution and Advantages of Sheet Pile Shoring over Traditional Methods

Soldier piles, earth nails, and sheet pile shoring are two traditional ways to hold up digs. They hurt the environment, take a long time to set up, and don't always work well in the long run. Land needs a lot of work, and the process of placing takes more than one step. This makes the job take longer and cost more.

Performance Comparison with Conventional Solutions

Sheet pile shoring systems work better than standard ways in a number of different rating factors. Installation speed is a big plus because current driving equipment can quickly put in sheet piles without the need for a lot of site preparation or drying time that comes with concrete solutions.

Water can't get through walls made of sheet piles because they are one unit. When systems are broken up into parts, seepage problems can happen. These systems don't have those problems. For jobs in the ocean or places with high groundwater levels, where it's important to keep air pressure in check, this safety feature comes in handy.

Cost-Effectiveness and Sustainability Benefits

When looking at the total costs of a project over its entire life, economic research always shows that overlapping steel sheet piles are cheaper than traditional methods. Because steel sheet piles can be used more than once, builders can spread the cost of the tools over several projects, which greatly lowers the cost per project compared to single-use options.

Another big benefit is that steel sheet piles are good for the environment because they can be recycled when they're no longer useful, which is in line with the ideas of the circular economy. Sheet pile construction has less of an effect on the environment because it disturbs the dirt less. It also protects the stability of the structures around it. Getting rid of concrete-based methods also lowers the carbon footprint because less cement is used, which means less pollution.

Key Considerations for Selecting and Designing Sheet Pile Systems

To choose the right sheet pile method, you need to look at the conditions of the place, the needs of the project, and the requirements of the law. Engineers have to look at a lot of different factors to make sure that the system works as well as it can while also being safe and cost-effective.

Site Assessment and Soil Characterization

A thorough geotechnical study is the basis of a good sheet pile design, since the features of the soil directly affect the choice of system and the way it is installed. The needed pile entry depth and structure requirements for good performance are based on the soil's mass, cohesion, and groundwater levels.

Clay soils, on the other hand, are usually easy to drive and connect, while sandy soils may need different ways to drive and better ways to control water. It is harder to put things in soils that are rocky or tightly packed down. You may need to treat the soil first or pick the right tools.

Compliance Standards and Installation Procedures

When picking a sheet pile system, it's important to make sure it meets all the rules and regulations. This is especially true for American ASTM standards and foreign specs. The ASTM A328 standard tells you how to use steel sheet piling materials in great detail, and the ASTM D1785 standard talks about how to set them up and the quality norms.

Pile placement is done in a planned way using vibration or impact driving tools, and alignment and locking integrity must be carefully checked. To make sure the system works the way it's supposed to, quality control methods include checking the balance, tracking the moving resistance in real time, and inspecting the interlocks. These steps are designed to keep installation times low while still allowing for high bending moment capacity and dirt retention.

Market Solutions and Procurement Guidance for B2B Clients

To make smart choices about sheet pile systems, including sheet pile shoring, procurement workers need to know a lot about how markets work, what suppliers can do, and how costs are structured. There are a lot of choices on the global market, and each one has its own pros and cons that need to be weighed against the needs of the project.

Supplier Evaluation Criteria

Instead of just looking at the price at the beginning, successful buying strategies focus on the technical skills, manufacturing quality, and project support services of the suppliers. Leading makers show that their products are always of high quality by using approved production processes and thorough testing programs to make sure that the features of the materials meet or go beyond what is required.

Technical support is especially helpful during the completion of a project, when experienced providers can help with installation, fixing, and making suggestions for improving performance. This help is especially important for difficult projects with tricky dirt or tight building plans, where technical know-how can keep delays from costing a lot of money.

Cost Structure Analysis and Procurement Strategies

It costs a lot to buy sheet piles because you have to get the supplies, move them, set up the tools, and maybe even rent some of these things. When people who work in buying understand these cost structures, they can come up with strategies for competitive bidding that keep quality high and lower the project's overall cost.

Short-term rentals are often cheaper, especially if the pile is going to be taken away and used again. When the same tools can be used on more than one job or for a long time, purchase deals are often the most cost-effective way to go. Whether you should buy or rent, you should think about how long the job will last, how often the tools will be used, and your long-term capital needs. This way, you can get the most for your money.

Environmental and Safety Impact of Using Interlocking Steel Sheet Piles

Environmental stewardship and worker safety represent increasingly important considerations in construction project evaluation, with interlocking steel sheet piles offering significant advantages in both areas compared to alternative solutions.

Environmental Performance Advantages

Interlocking steel sheet piles deliver substantial environmental benefits through reduced soil disturbance, minimal noise generation, and excellent recyclability characteristics. The installation process produces significantly less excavated material compared to traditional methods, reducing disposal requirements and associated environmental impact.

Modern installation techniques offer efficient, vibration-free installation with modern driving equipment, minimizing disturbance to surrounding structures and communities. This reduced impact proves particularly valuable in urban environments where noise restrictions and vibration control are critical project constraints. The steel composition enables complete material recovery and recycling at project completion, supporting sustainable construction practices.

Safety Protocols and Risk Mitigation

Comprehensive safety protocols specific to sheet pile operations ensure worker protection and project success through systematic risk identification and mitigation strategies. These protocols address equipment operation, excavation stability monitoring, and emergency response procedures tailored to sheet pile construction environments.

The inherent stability provided by continuous sheet pile shoring reduces excavation-related safety risks compared to unsupported or partially supported excavations. Real-time monitoring systems can track wall deflection and soil movement, providing early warning of potential stability issues. These safety-focused systems with locking devices and sensors enhance overall project safety while maintaining operational efficiency.

Conclusion

Interlocking steel sheet piles represent the pinnacle of excavation support technology, offering unmatched performance in challenging construction environments. The combination of engineering excellence, environmental responsibility, and economic efficiency makes these systems the preferred choice for demanding infrastructure projects. As construction industry standards continue evolving toward greater sustainability and safety requirements, interlocking steel sheet piles provide the technical capabilities and operational flexibility necessary for long-term success. Investment in quality sheet pile systems delivers measurable benefits through reduced project risks, enhanced safety performance, and improved environmental compliance.

FAQ

1. What factors determine whether interlocking steel sheet piles are suitable for my project?

Project suitability depends primarily on excavation depth, soil conditions, groundwater levels, and space constraints. Sheet piles excel in soft to medium-dense soils with high groundwater levels where continuous waterproofing is essential. Projects requiring depths exceeding 15 feet typically benefit most from interlocking systems due to their superior structural performance compared to alternative methods.

2. How do soil types affect sheet pile selection and performance?

Clay soils provide excellent driving conditions and reliable pile embedment, making installation straightforward with standard equipment. Sandy soils may require enhanced dewatering systems and specialized driving techniques to maintain interlock integrity. Rocky conditions necessitate pre-drilling or specialized driving equipment, potentially affecting project economics and timeline considerations.

3. What are typical lead times for large-scale sheet pile projects?

Material procurement typically requires 4-8 weeks, depending on project scale and specification requirements. Custom profiles or specialized coatings may extend lead times to 12-16 weeks. Installation duration varies based on soil conditions and project complexity, with experienced contractors typically achieving 100-200 linear feet per day under favorable conditions.

Partner with HYPILE for Superior Sheet Pile Shoring Solutions

HYPILE delivers comprehensive sheet pile shoring systems engineered for exceptional performance in the most demanding excavation projects. Our integrated approach combines advanced manufacturing capabilities with 45+ years of foundation engineering expertise, ensuring reliable watertightness for excavation support in wet conditions while maintaining the highest safety standards. As a leading sheet pile shoring manufacturer, we provide customizable solutions for different pit depths and soils, offering quick setup, removable, and reusable systems that optimize project economics. Contact our technical team at sales@hypile.com to discuss your specific requirements and discover how our "BUILD TO THE LAST" philosophy can enhance your next excavation project through superior engineering and proven performance.
