European Standard Steel Rail

European Standard Steel Rail - Premium Railway Infrastructure Solutions

Are you looking for reliable railway infrastructure that meets European quality standards? At Tianjin Hypile Foundation Engineering Co., Ltd., we manufacture premium European Standard Steel Rail that complies with EN13674.1-2011 specifications. Our hot-rolled steel rails convey uncommon load-bearing capacity and strength for present day railroad frameworks. With over 40 a long time of steel fabricating skill, we give comprehensive rail arrangements for high-speed trains, urban travel, and overwhelming cargo applications worldwide.​​​​​​​

Products Overview

Our steel rail portfolio covers a comprehensive run of European standard profiles outlined for different railroad applications. Each rail sort experiences thorough quality control to guarantee ideal execution in requesting operational environments.

We fabricate rails extending from 12 to 25 meters in length, with custom lengths accessible based on your particular extend prerequisites. Our fabricating office utilizes progressed hot-rolling innovation to deliver rails with predominant metallurgical properties and dimensional accuracy.

Available Rail Types:

• Light rails: 45E1, 49E1, 49E2
• Medium-duty rails: 50E1, 50E2, 50E4, 50E5, 50E6
• Heavy-duty rails: 54E1, 54E2, 54E3, 55E1
• Premium rails: 60E1, 60E2

Specification & Drawing

Rail Type	Height (mm)	Head Width (mm)	Base Width (mm)	Weight (kg/m)	Standard Length (m)
45E1	140	65	125	44.65	12-25
49E1	149	70	125	49.43	12-25
50E2	153	70	132	50.40	12-25
54E1	159	73	140	54.77	12-25
60E1	172	75	150	60.34	12-25

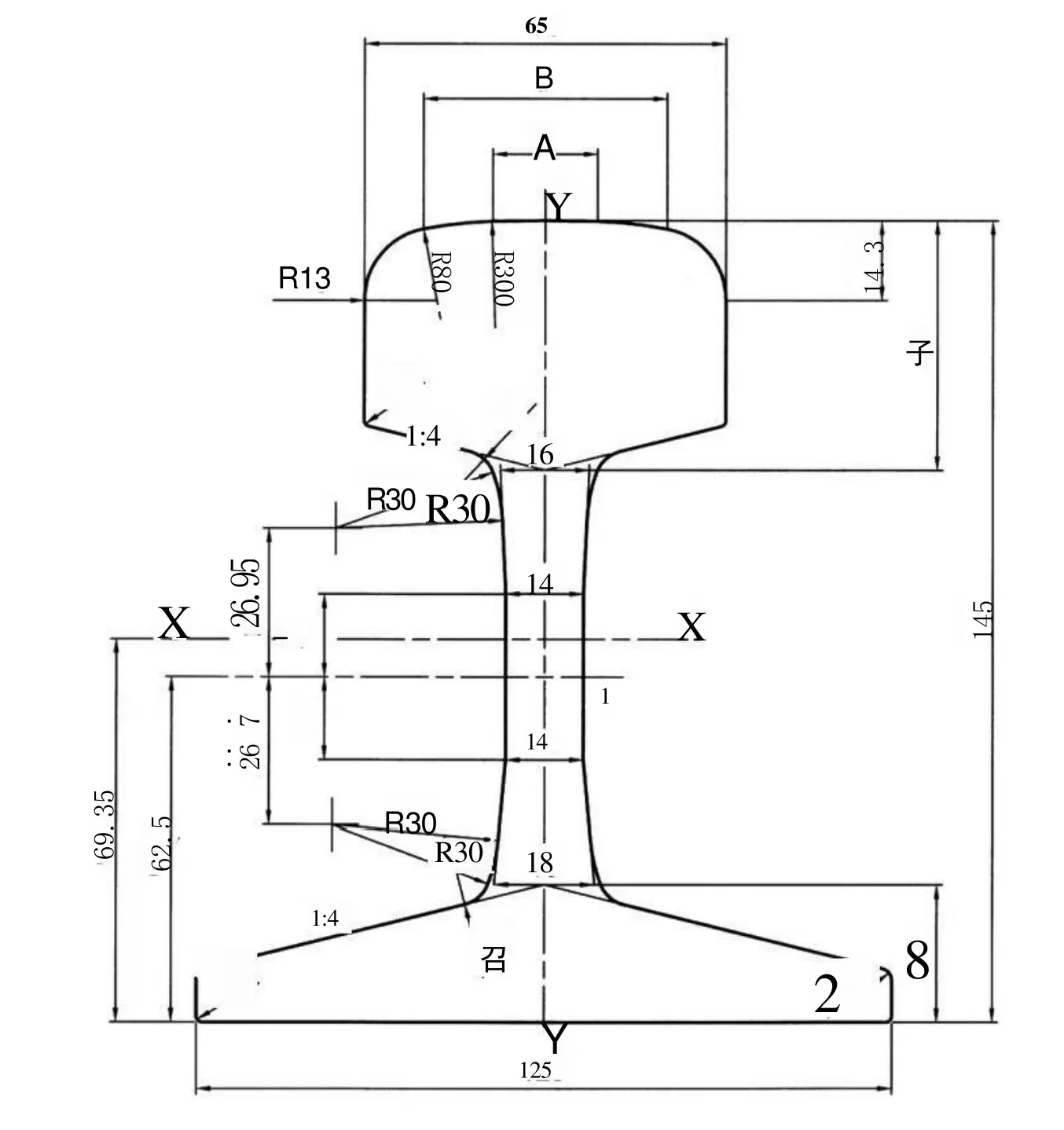

46E1 Drawing

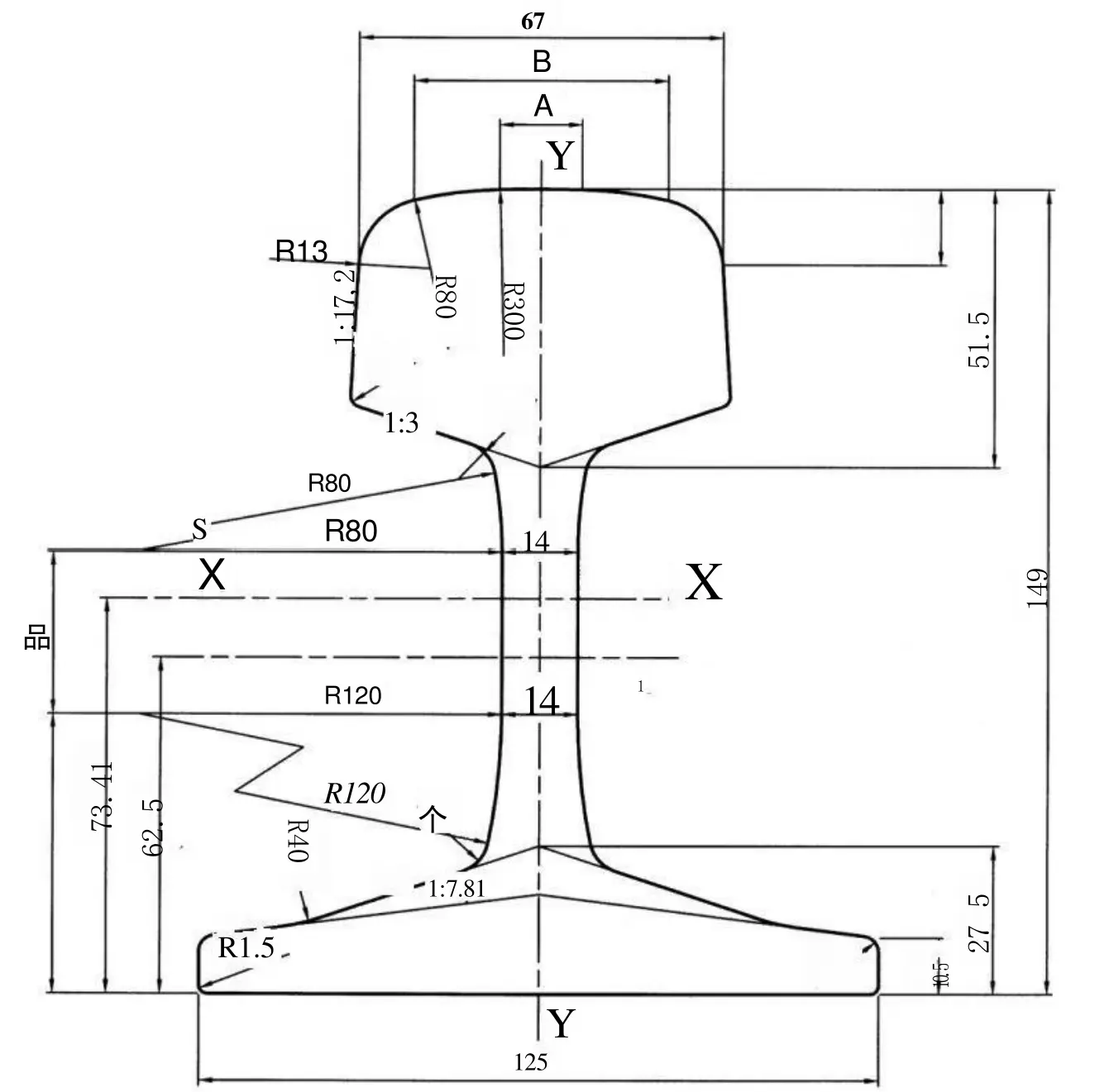

49E1 Drawing

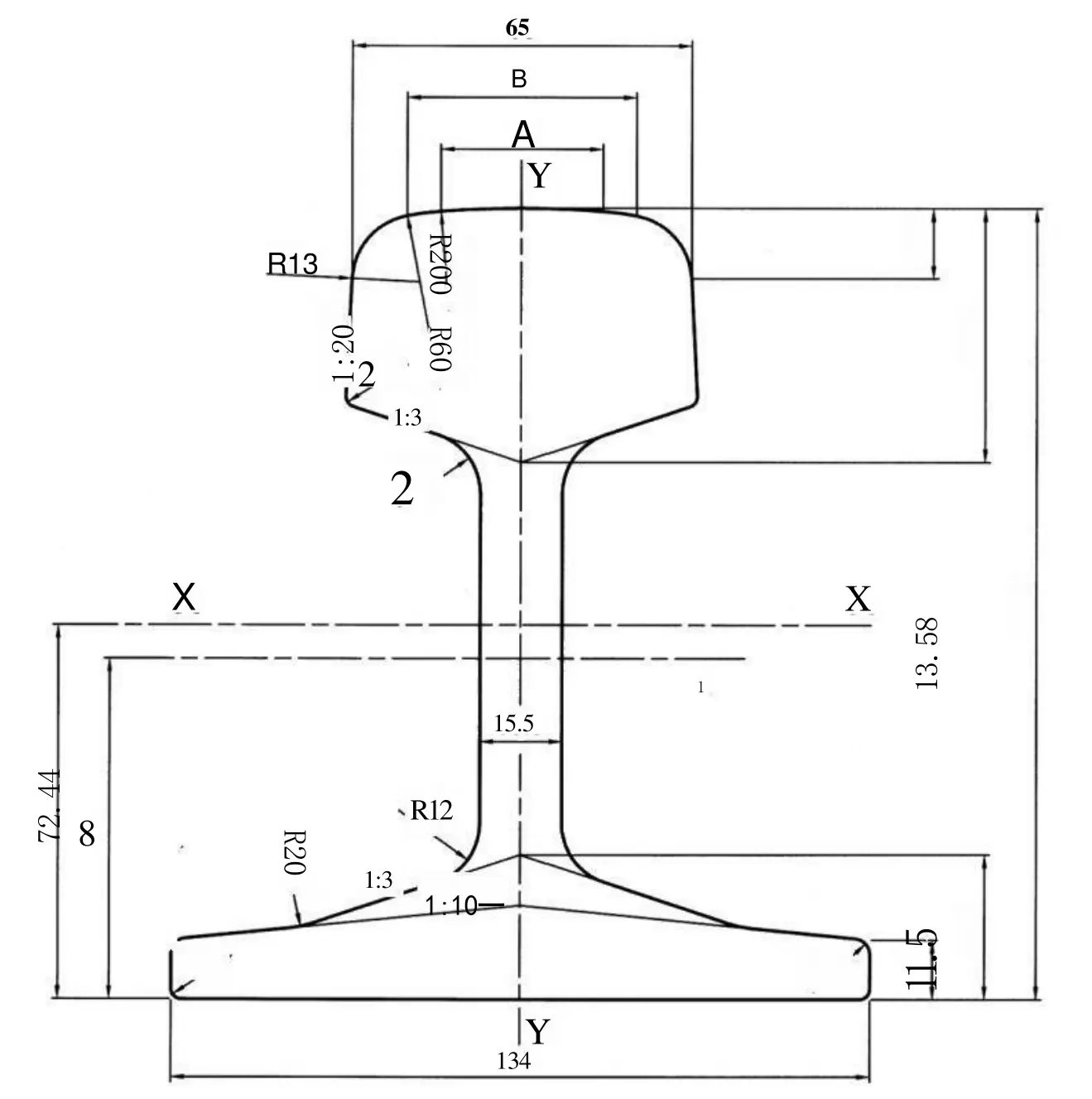

50E1 Drawing

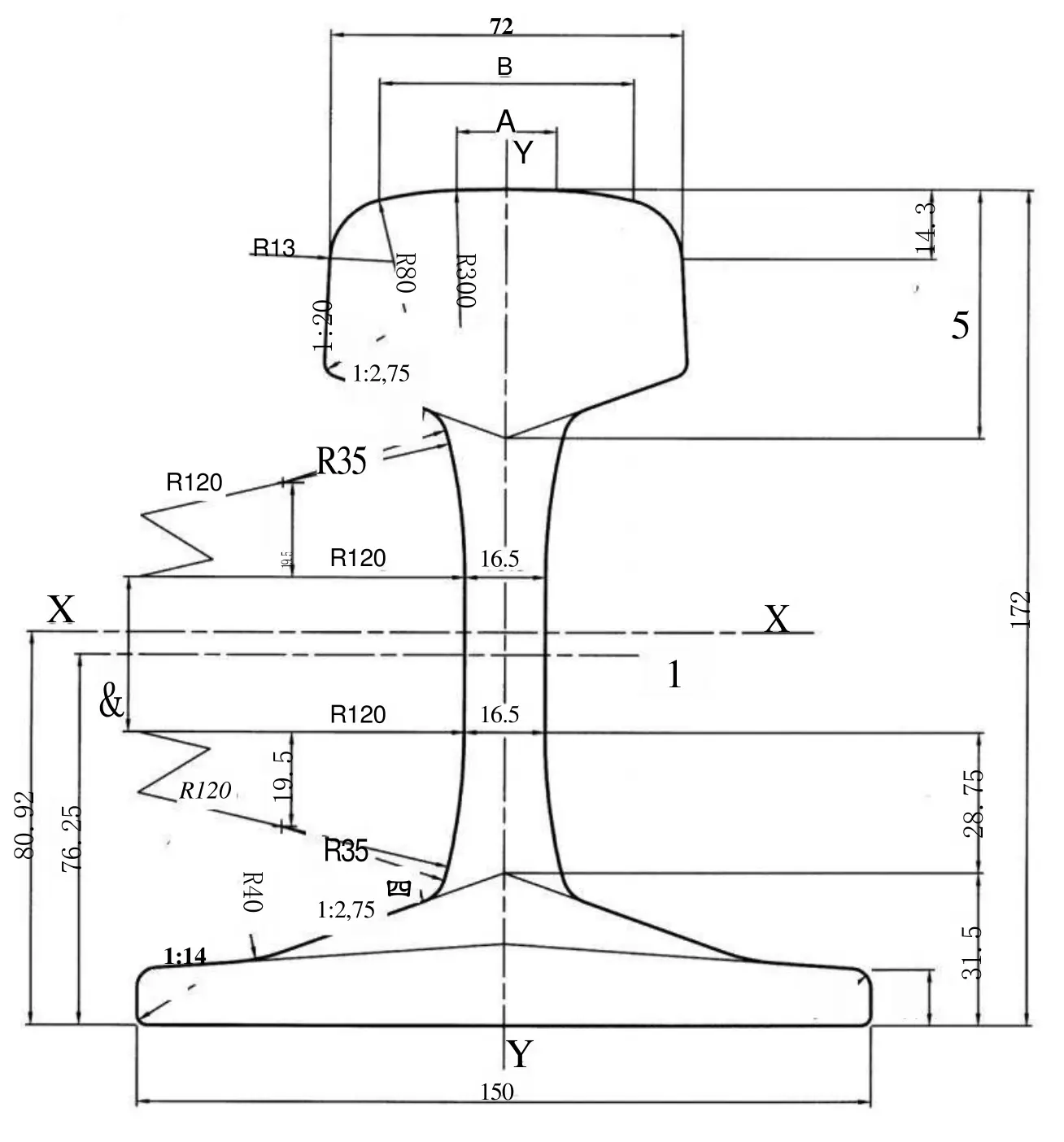

​​​​​​​​​​​​​​60EI Drawing

Manufacturing Standard: EN13674.1-2011

Material Grade: R200, R220, R260, R350HT

Surface Treatment: Mill finish or protective coating available

Technical Data

Our rails meet stringent European technical requirements for mechanical properties and chemical composition:

Property	R200 Grade	R260 Grade	R350HT Grade
Tensile Strength (MPa)	≥ 680	≥ 880	≥ 1175
Yield Strength (MPa)	≥ 320	≥ 500	≥ 650
Elongation (%)	≥ 10	≥ 9	≥ 9
Hardness (HB)	200-260	260-300	350-390
Carbon Content (%)	0.40-0.82	0.67-0.82	0.85-1.10

Quality Certifications:

• EN13674.1-2011 compliance
• ISO 9001:2015 quality management
• Third-party inspection available

Key Advantages

High Load-Bearing Capacity

Your railway system demands exceptional strength. Our European Standard Steel Rail withstands heavy axle loads and high-frequency traffic without compromising structural integrity.

Enhanced Wear and Fatigue Resistance

Advanced metallurgy amplifies benefit life altogether. You advantage from decreased support costs and made strides operational efficiency.​​​​​​​

Hot-Rolled Fabricating for Predominant Quality

Our controlled rolling prepare guarantees uniform grain structure and ideal mechanical properties all through the rail profile.

Standardized and Customizable Specifications

Choose from standard EN profiles or ask custom determinations. We adjust our fabricating to meet your special extend requirements.

Versatile Applications

Perfect for high-speed railroads, urban metro frameworks, cargo hallways, and mechanical tracks. Our rails perform dependably over differing operational conditions.

Cost-Effectiveness Over Time

Initial investment pays dividends through extended service life and minimal maintenance requirements.

Safety and Stability

Precise dimensional tolerance ensures smooth wheel-rail interaction and enhanced passenger safety.

Project Gallery & Applications

Our steel rails serve critical infrastructure projects across multiple sectors:

High-Speed Railway Networks

• Passenger rail systems operating at speeds up to 350 km/h
• Urban light rail and metro transit systems
• Intercity and regional railway connections

Heavy Freight Applications

• Mining railway systems with extreme load requirements
• Port and terminal railway infrastructure
• Industrial plant internal transportation

Specialized Railway Solutions

• Crane runway systems in manufacturing facilities
• Shipyard and construction site temporary tracks
• Heritage and tourism railway restoration projects

Why Choose Us

Integrated Manufacturing Excellence

As a subsidiary of Tianjin Xinyue Steel Group, we leverage four decades of steel manufacturing expertise. You receive products backed by proven industrial experience.

Global Supply Chain Support

Our international presence includes offices in UAE and Dubai. We deliver efficiently to projects worldwide with localized support services.

Comprehensive Quality Assurance

Every rail, including European Standard Steel Rail, undergoes extensive testing including dimensional inspection, mechanical property verification, and surface quality assessment.

Engineering Support Services

Our technical team provides consultation on rail selection, installation guidance, and ongoing maintenance recommendations.

Customization Capabilities

We manufacture rails to your exact specifications including special lengths, grades, and surface treatments.

BUILD TO THE LAST Philosophy

Our commitment to long-term durability ensures your railway infrastructure operates reliably for decades.

FAQ

Q: What lengths are accessible for your rails?​​​​​​​

A: Standard lengths run from 12 to 25 meters. We too fabricate custom lengths based on your extend specifications.

Q: Do you give fabric certificates?

A: Yes, we supply comprehensive process test certificates and third-party assessment reports for all rail deliveries.

Q: What surface medications do you offer?

A: We give process wrap up as standard, with discretionary defensive coatings and galvanizing for upgraded erosion resistance.

Q: Can you supply rails for high-speed applications?

A: Completely. Our item grades R350HT are particularly planned for high-speed railroad frameworks.

Q: What is your typical delivery timeframe?

A: Standard profiles typically ship within 4-6 weeks. Custom specifications may require 6-8 weeks depending on complexity.

Q: Do you provide technical support for rail selection?

A: Yes, our engineering team assists with rail grade selection, specification optimization, and installation guidance.

Contact Us

Ready to discuss your railway project requirements, including European Standard Steel Rail? Contact our technical specialists at sales@hypile.com for personalized consultation and competitive quotations.
