British Standard Steel Rail

British Standard Steel Rail - Premium BS11:1985 Railway Infrastructure Solutions

Looking for reliable railway infrastructure materials that meet stringent British standards? Our British Standard Steel Rail products deliver exceptional performance for your railway construction projects. Fabricated to BS11:1985 determinations, these rails give the quality and strength your foundation requests. Whether you're building unused railroad lines or updating existing tracks, our comprehensive run guarantees you get the right arrangement for your particular needs.​​​​​​​

Products Overview

Our items collection includes nine unmistakable sorts, each built to meet particular railroad applications. From heavy-duty mainline prerequisites to specialized mechanical tracks, we give arrangements that combine conventional British designing greatness with cutting edge fabricating techniques.

Each rail experiences thorough quality control forms. Our hot-rolled fabricating guarantees predominant fabric properties all through the whole cross-section. You'll get items that not as it were meet BS11:1985 benchmarks but frequently surpass execution desires in real-world applications.

Specification & Drawing

Rail Type	Weight (kg/m)	Head Width (mm)	Head Height (mm)	Web Thickness (mm)	Foot Width (mm)
BS113A	56.2	70	158	15.9	150
BS110A	54.8	70	156	15.5	150
BS90A	44.6	68	136	13.5	130
BS80A	39.8	64	131	12.7	125
BS75A	37.2	62	125	12.3	120
BS70A	34.7	60	120	11.9	115
BS60A	29.8	58	107	10.5	108
BS60R	29.8	58	107	10.5	108
BS50O	24.8	54	95	9.5	95

Standard Length Options:

• 12m to 25m standard lengths
• Custom lengths available upon request
• Standard: BS11:1985 compliance

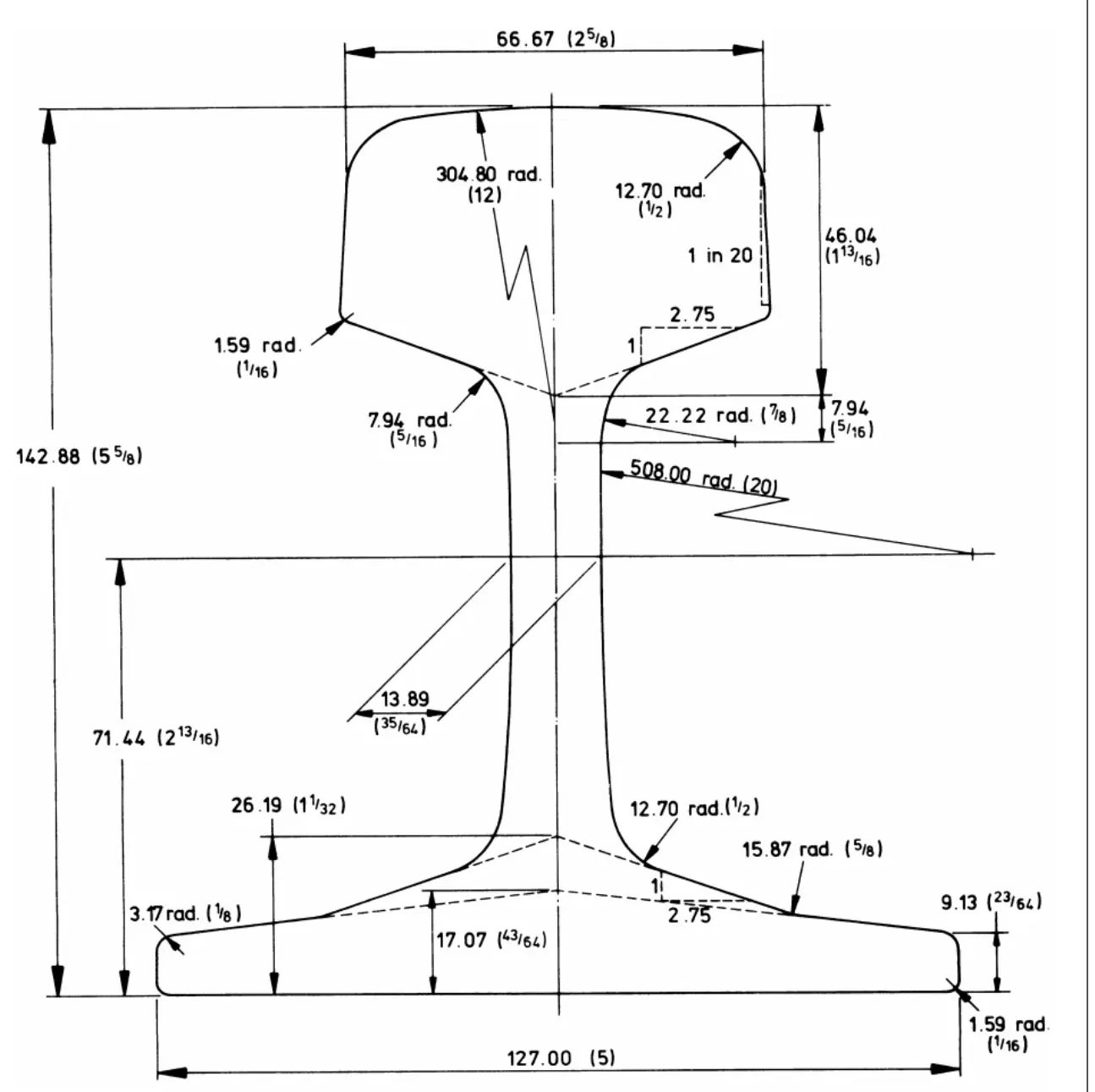

BS 90A Drawing

BS 110A Drawing

Technical Data

Material Composition:

• Carbon content: 0.40-0.82%
• Manganese: 0.80-1.25%
• Silicon: 0.13-0.60%
• Phosphorus: ≤0.035%
• Sulfur: ≤0.040%

Mechanical Properties:

• Tensile strength: 880-1180 MPa
• Yield strength: ≥490 MPa
• Elongation: ≥9%
• Hardness: 260-300 HB

Manufacturing Standards:

• Hot-rolled production process
• Straightness tolerance: ≤2mm/m
• Dimensional accuracy: ±2mm

Key Advantages

Superior Load-Bearing Performance

Your railway infrastructure needs materials that handle extreme loads safely. Our British Standard Steel Rail distributes weight efficiently across the entire track structure, reducing stress concentrations and extending overall system life.

Enhanced Durability and Wear Resistance

Hot-rolled fabricating makes a uniform grain structure all through the rail. This prepare conveys extraordinary wear resistance, especially imperative for high-traffic railroad applications where rail head wear can gotten to be costly.​​​​​​​

Standardized Quality Assurance

Every rail meets BS11:1985 details accurately. You get steady quality over your whole arrange, streamlining establishment and guaranteeing compatibility with existing infrastructure.

Flexible Length Options

Whether your venture requires standard 12-25m lengths or custom measurements, we oblige your particular prerequisites. This adaptability diminishes squander and disentangles coordinations for your development teams.

Cost-Effective Long-Term Solution

While beginning venture things, our rails provide extraordinary esteem over their benefit life. Decreased upkeep necessities and amplified substitution interims give critical taken a toll savings.

Project Gallery & Applications

Mainline Railway Construction

Heavy-duty BS113A and BS110A rails exceed expectations in mainline applications where high-speed trains and overwhelming cargo make requesting operational conditions.​​​​​​​

Industrial and Mining Railways

Medium-weight alternatives like BS80A and BS75A give solid benefit in mechanical situations where specialized rolling stock operates.

Light Rail and Tramway Systems

Our BS60A and BS50O rails offer culminate arrangements for urban travel frameworks, adjusting execution with cost-effectiveness.

Heritage and Preservation Railways

Authentic British Standard profiles help maintain historical accuracy while providing modern safety standards for heritage railway operations.

Why Choose Us

Four Decades of Steel Excellence

As portion of Tianjin Xinyue Steel Bunch, we bring over 40 a long time of steel fabricating skill to each extend. This encounter interprets straightforwardly into prevalent item quality and dependable conveyance performance.​​​​​​​

Integrated Fabricating Capability

Our comprehensive offices handle everything from crude steel generation through last rail wrapping up. This integration guarantees quality control at each organize whereas keeping up competitive pricing.

Global Reach with Local Support

With international offices and strategic warehouses, including facilities in the UAE and Dubai, we provide rapid response times and localized service wherever your projects take you, including British Standard Steel Rail.

Customization Expertise

Beyond standard profiles, our engineering teams work with you to develop specialized solutions for unique railway applications. This capability sets us apart in complex infrastructure projects.

BUILD TO THE LAST Philosophy

Our commitment goes beyond meeting specifications. We engineer products for maximum service life, ensuring your railway infrastructure performs reliably for decades.

FAQ

Q: What's the standard delivery time for the product orders?

A: Typical delivery ranges from 4-6 weeks for standard profiles and lengths. Custom specifications may require 6-8 weeks. Our warehouse network helps reduce delivery times for urgent projects.

Q: Can you give certification documentation for railroad projects?​​​​​​​

A: Yes, we give comprehensive process test certificates, fabric traceability documentation, and BS11:1985 compliance certificates with each shipment.

Q: Do you offer cutting and conclusion planning services?

A: Completely. Our manufacture capabilities incorporate exactness cutting, penetrating, and conclusion arrangement to your correct details, sparing time amid installation.

Q: What's the least arrange quantity?

A: Least orders regularly begin at 25 tons, but we can oblige littler amounts for specialized applications or critical repairs.

Q: How do you ensure rail straightness during shipping?

A: Our specialized rail handling equipment and custom shipping fixtures maintain straightness throughout transportation. We also provide installation guidance for proper handling on-site.
