ISO 6934-4:2020 PC Strand

Name: ISO 6934-4:2020 PC Strand
SKU: N/A

Prestressed Concrete Strand | PC Strand
Standard: GB/T524.7, ASTM A416, BS 5896, JIS G3536, AS/NZS 4672,DIN EN 10138-3 ,AS 1311,GOST 13840,ABNT NBR 7483,ISO6934-4:2020
Common Size: 12.7mm 15.24mm, 7.94mm-28.6mm

Send Inquiry

Download

Product Description

ISO 6934-4:2020 PC Strand - Premium Prestressed Concrete Reinforcement

Looking for high-quality prestressed concrete strands that meet ISO 6934-4:2020 standards? You've come to the right place. Tianjin Hypile Foundation Engineering Co., Ltd. specializes in manufacturing premium ISO 6934-4:2020 PC Strand products that deliver exceptional performance for your construction projects. Our prestressed concrete strands are designed to give predominant ductile quality, strength, and unwavering quality for requesting foundation applications. With over 40 a long time of steel fabricating ability, we get it what it takes to make items that really last.

Products Overview

Our prestressed concrete strands acclimate to numerous universal measures counting GB/T524.7, ASTM A416, BS 5896, JIS G3536, AS/NZS 4672, Clamor EN 10138-3, AS 1311, GOST 13840, ABNT NBR 7483, and ISO 6934-4:2020. These high-tensile steel cables are particularly outlined for prestressed concrete development where extraordinary quality and moo unwinding properties are essential.

Each strand comprises of numerous steel wires wound together to shape a helical setup. This one of a kind structure gives ideal holding characteristics with concrete whereas keeping up fabulous taking care of properties amid installation.

Size & Specification

Nominal Diameter	Cross-sectional Area	Nominal Weight	Minimum Breaking Load
7.94mm	37.4 mm²	0.294 kg/m	41.9 kN
9.53mm	55.0 mm²	0.432 kg/m	62.1 kN
11.11mm	74.2 mm²	0.583 kg/m	82.5 kN
12.7mm	98.7 mm²	0.775 kg/m	183.7 kN
15.24mm	140.0 mm²	1.102 kg/m	265.4 kN
17.8mm	191.0 mm²	1.50 kg/m	300.0 kN
21.8mm	283.5 mm²	2.235 kg/m	420.0 kN
28.6mm	530.0 mm²	4.16 kg/m	780.0 kN

Note: Specifications may vary based on specific standard requirements and customer needs.

Technical Data

Property	Value	Standard
Tensile Strength	1770-1960 MPa	ISO 6934-4:2020
Yield Strength	≥1570 MPa	ISO 6934-4:2020
Elongation at Maximum Load	≥3.5%	ISO 6934-4:2020
Relaxation (1000h at 20°C)	≤2.5%	ISO 6934-4:2020
Modulus of Elasticity	195 GPa	ISO 6934-4:2020
Surface Condition	Bright/Galvanized	As Required

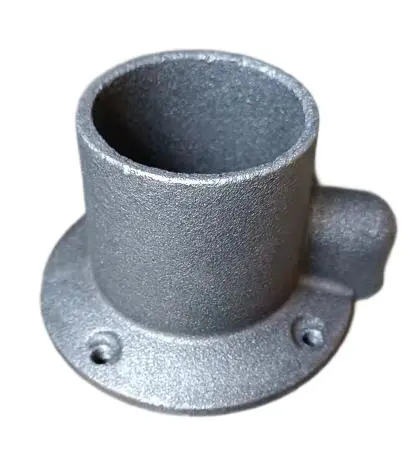

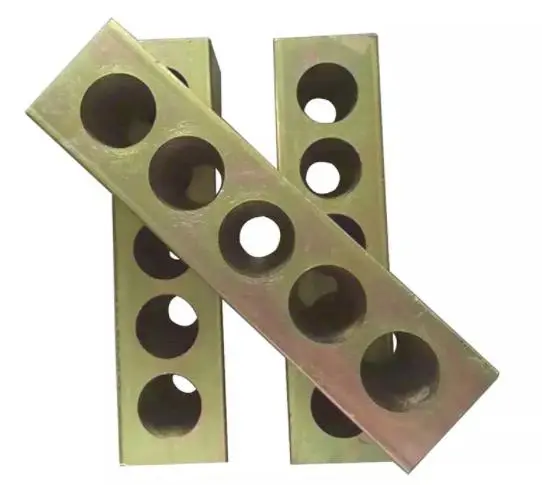

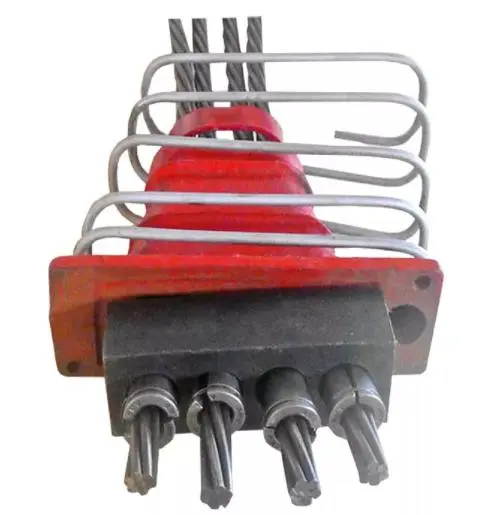

PC STRAND Accessories

PC STRAND

Key Advantages

Superior Malleable Quality: Our strands provide remarkable load-bearing capacity with pliable qualities up to 1960 MPa, guaranteeing your structures can handle extraordinary loads safely.

Low Unwinding Properties: Built for negligible stretch misfortune over time, keeping up auxiliary judgment all through the benefit life of your concrete elements.

Excellent Weariness Resistance: Progressed fabricating forms make strands that withstand rehashed stacking cycles without disappointment, idealize for energetic applications like bridges.

Consistent Quality: Every batch undergoes rigorous testing to ensure compliance with ISO 6934-4:2020 PC Strand specifications and your project requirements.

Versatile Applications: Reasonable for prestressed concrete bars, chunks, bridges, stopping structures, and precast elements.

Project Gallery & Applications

Our prestressed concrete strands have been successfully used in numerous infrastructure projects worldwide. Common applications include:

Bridge Construction: Highway overpasses, railway bridges, and pedestrian walkways
Building Structures: High-rise buildings, parking garages, and commercial complexes
Precast Elements: Concrete beams, hollow core slabs, and architectural panels
Marine Infrastructure: Piers, jetties, and offshore platforms
Industrial Facilities: Warehouses, manufacturing plants, and storage facilities

Each application benefits from the superior mechanical properties and durability that our strands provide.

Why Choose Us

40+ Years of Excellence: As a subsidiary of Tianjin Xinyue Steel Group, we bring decades of steel manufacturing expertise to every product we create.

Integrated Arrangements: From fabricating to conveyance, we give total turnkey arrangements that streamline your acquirement process.

Global Reach: With worldwide workplaces and stockrooms, counting areas in UAE and Dubai, we provide around the world with shorter lead times.

Quality Assurance: Our "BUILD TO THE LAST" philosophy ensures every ISO 6934-4:2020 PC Strand meets the highest quality standards.

Custom Capabilities: We specialize in custom-made arrangements to meet your particular extend necessities and specialized specifications.

Professional Bolster: Our experienced building group gives specialized help all through your venture lifecycle.

FAQ

Q: What measures do your PC strands comply with?

A: Our strands meet different worldwide benchmarks counting ISO 6934-4:2020, ASTM A416, BS 5896, and others based on your venture requirements.

Q: How do you guarantee steady quality?

A: We actualize comprehensive quality control measures counting crude fabric assessment, in-process observing, and last item testing concurring to significant standards.

Q: Can you give custom specifications?

A: Yes, we specialize in custom manufacture and can adjust determinations to meet your particular extend needs.

Q: What bundling choices are available?

A: We offer different bundling arrangements counting coils, reels, and straight lengths, depending on your taking care of and establishment requirements.

Q: Do you give specialized support?

A: Completely. Our building group offers comprehensive specialized help from item determination through establishment guidance.

Contact Us

Ready to enhance your next construction project with premium prestressed concrete strands? Contact our team at sales@hypile.com to discuss your requirements and receive a customized quote for ISO 6934-4:2020 PC Strand products that deliver lasting performance.
