ASTM A416 7 Wire PC Strand

ASTM A416 7 Wire PC Strand

Looking for reliable prestressed concrete strand for your construction projects? Our ASTM A416 7 Wire PC Strand delivers exceptional performance for bridges, buildings, and infrastructure applications. Built to the highest industry standards, this prestressing steel strand offers superior tensile strength and durability. You get consistent quality that meets critical engineering requirements. Our experienced team at Tianjin Hypile Foundation Engineering ensures every strand exceeds expectations for your most demanding projects.

Products Overview

Our prestressed concrete strand features seven high-strength steel wires helically wound to create maximum bonding with concrete. This design provides excellent load distribution and superior mechanical properties.

The strand undergoes precise manufacturing processes to ensure uniform diameter and consistent performance. Each wire receives specialized treatment for optimal strength characteristics.

You benefit from proven technology that supports long-term structural integrity. Our manufacturing follows strict quality control protocols throughout production.

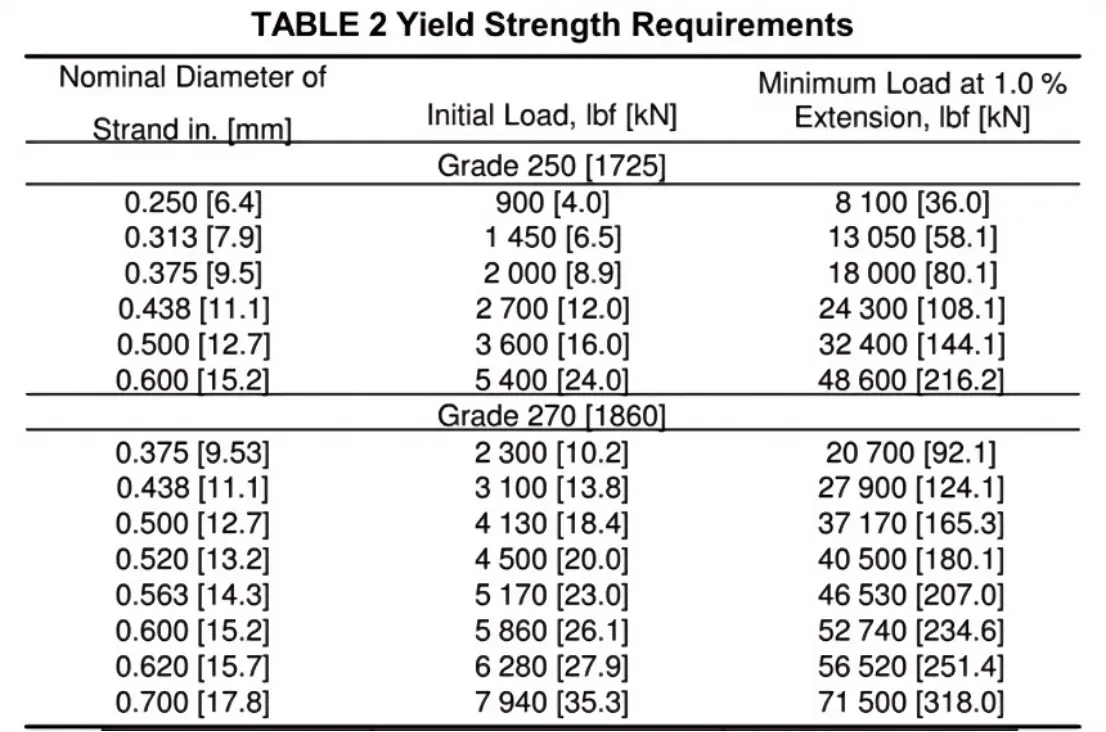

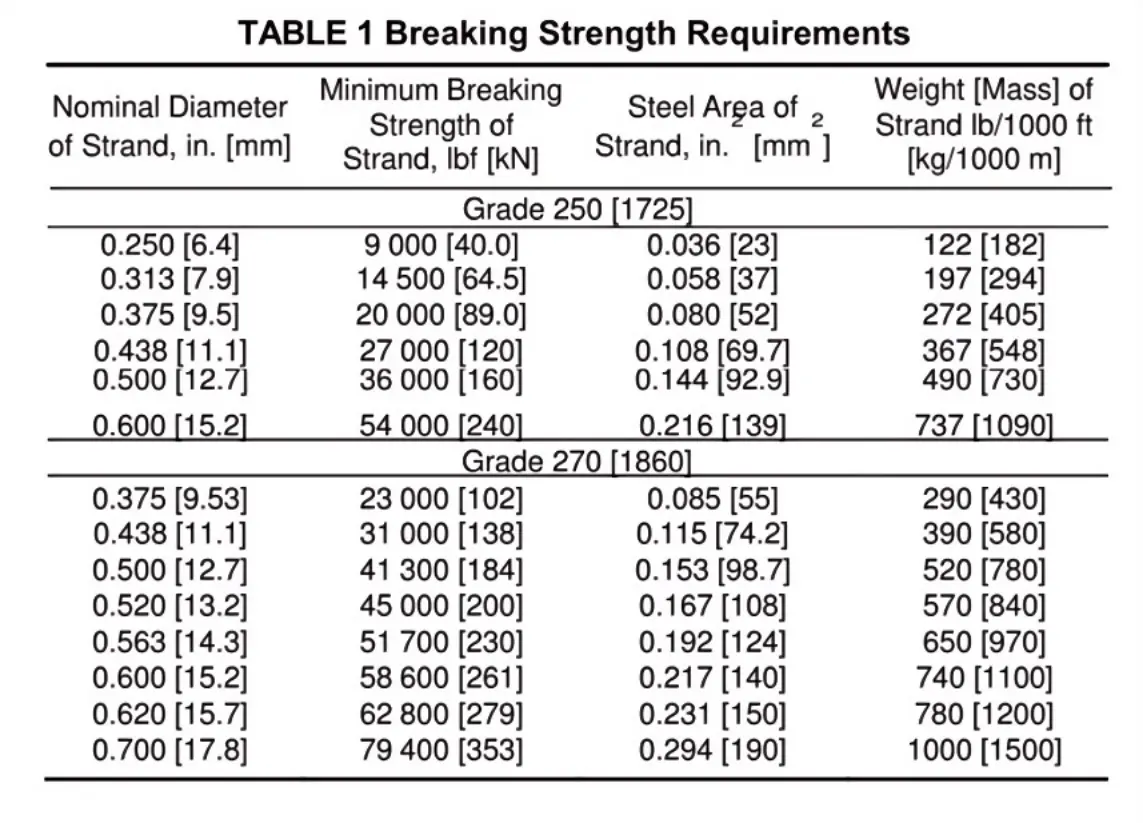

Size & Specification

Technical Data

Chemical Composition:

• Carbon: 0.78-0.85%
• Silicon: 0.12-0.32%
• Manganese: 0.60-0.90%
• Phosphorus: ≤0.025%
• Sulfur: ≤0.025%

Mechanical Properties:

• Yield Strength: ≥1674 MPa
• Ultimate Tensile Strength: ≥1860 MPa
• Elongation: ≥3.5%
• Modulus of Elasticity: 195 GPa

Physical Characteristics:

• Wire Configuration: 7-wire strand
• Lay Length: 12-16 times nominal diameter
• Surface Condition: Smooth, clean finish

Key Advantages

High Tensile Strength: Provides exceptional load-bearing capacity for demanding applications, including ASTM A416 7 Wire PC Strand. Your structures benefit from superior strength-to-weight ratios.

Moo Unwinding Execution: Keeps up prestress levels over expanded periods. You encounter negligible stretch misfortune amid benefit life.

Excellent Weariness Resistance: Withstands rehashed stacking cycles without disappointment. This guarantees long-term basic reliability.

Superior Holding: Optimized surface surface improves concrete attachment. Your concrete components accomplish most extreme composite action.

Corrosion Assurance: Accessible with galvanized or epoxy coatings for unforgiving situations. Expanded benefit life decreases support costs.

Project Exhibition & Applications

Bridge Development: Pre-tensioned and post-tensioned bridge decks, braces, and cable-stayed frameworks depend on our prestressing strand.

Building Structures:  Precast concrete bars, pieces, and engineering components advantage from steady strand performance.

Infrastructure Ventures: Water treatment offices, stopping structures, and mechanical buildings utilize our solid materials.

Marine Applications: Coastal and seaward structures require our corrosion-resistant strand options.

The strand bolsters both pre-tensioning and post-tensioning applications. You can indicate the correct setup for your extend requirements.

Why Choose Us

Integrated Manufacturing: As part of Tianjin Xinyue Steel Group, we control quality from raw material to finished product. You receive consistent, reliable materials.

40+ Years Experience: Decades of steel manufacturing expertise ensure proven performance. Our knowledge supports your project success.

Global Reach: International offices and warehouses provide local support worldwide. Fast delivery and technical assistance when you need it.

Custom Solutions: Engineering support helps optimize strand selection for specific applications. We work with your team to achieve project goals.

Quality Commitment: "BUILD TO THE LAST" philosophy drives continuous improvement. Your investment delivers maximum long-term value.

FAQ

Q: What's the distinction between Review 250 and Review 270 strand?​​​​​​​

A: Review 270 offers higher pliable quality (1860 MPa vs 1725 MPa), giving more noteworthy prestressing constrain for requesting applications.

Q: How ought to the item be put away on site?

A: Store in dry conditions off the ground. Secure from dampness and chemical defilement. Cover with waterproof materials when fundamental.

Q: What coating options are available for corrosive environments?

A: We offer galvanized coating per ASTM A416 and epoxy coating systems. Selection depends on specific environmental conditions.

Q: Can you provide custom lengths and packaging?

A: Yes, we manufacture to your specifications. Standard coils and cut lengths available with custom packaging options.

Q: What technical support do you provide?

A: Our engineering team assists with strand selection, installation guidance, and quality documentation for your projects.

Contact Us

Ready to specify high-performance prestressing strand for your next project? Contact our technical team at sales@hypile.com for detailed specifications and engineering support. We're here to help you achieve structural excellence with proven ASTM A416 7 Wire PC Strand solutions.
