/ PVC(Vinyl) Sheet Pile

Double U Type PVC Sheet Piles Vinyl Sheet Piles

Name: Double U Type PVC Sheet Piles Vinyl Sheet Piles
SKU: N/A

Eco-Friendly Lightweight PVC Sheet Piles
Product Range:
U-Type Sheet Piles
Z-Type Sheet Piles
Double U Sheet Piles
Multi-Lock Interlocking Piles
Corner Piles
Seal Piles
Specifications:
U-Type Sheet Piles
Width: 457 mm | 525 mm | 606 mm | 622 mm
Z-Type Sheet Piles
Width: 457 mm | 525 mm | 606 mm | 622 mm
Color Options:
Standard: White, Grey
Customizable: RAL/Pantone color matching available
Additional Services: OEM Supported

Send Inquiry

Download

Product Description

Double U Type PVC Sheet Piles Vinyl Sheet Piles - Premium Foundation Solutions

Looking for reliable, corrosion-resistant retaining wall solutions? Our Double U Type PVC Sheet Piles Vinyl Sheet Piles deliver exceptional performance for marine, infrastructure, and environmental protection projects. These lightweight, eco-friendly heaps offer predominant strength compared to conventional steel choices. With over 40 a long time of building skill, HYPILE gives comprehensive establishment arrangements that final decades without support requirements.

Products Overview

Our comprehensive PVC sheet pile system includes multiple configurations designed for various foundation and retaining applications:

U-Type Sheet Piles: Standard interlocking design for general retaining applications
Z-Type Sheet Piles: Enhanced structural performance for higher load requirements
Double U Sheet Piles: Maximum strength configuration for demanding projects
Multi-Lock Interlocking Piles: Advanced connection system for superior watertight seals
Corner Piles: Specialized corner solutions for complete containment systems
Seal Piles: Terminal and closure elements for system completion

Available in standard white and grey colors, with custom RAL/Pantone color matching for specific project requirements.

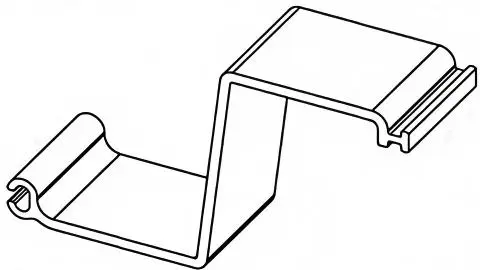

PVC SHEET PILE

Z Type Sheet Piles Size Chart

Type	Z	Z
Model	HYZ-457	HYZ-402
Section Width	457 mm	402 mm
Section depth	254 mm	305 mm
Length	Customized	Customized
Thickness	8-12mm	8-12mm
Color	Grey/Customized	Grey/Customized

PVC SHEET PILE

U Type Sheet Piles Size Chart

Type	U	U	U	U	U
Model	HYU-457	HYU-500	HYU-525	HYU-606	HYU-622
Section Width	457	500	525	606	622
Section depth	152	150	159	230	230
Length	Customized	Customized	Customized	Customized	Customized
Thickness	9-12 mm	9-12 mm	9-12 mm	9-12 mm	9-12 mm
Color	Grey/Customized	Grey/Customized	Grey/Customized	Grey/Customized	Grey/Customized

PVC SHEET PILE

Double U Sheet Piles Size Chart

Type	HYU-762	HYU-718
Section Width	762 mm	718 mm
Section depth	305 mm	180 mm
Length	Customized	Customized
Thickness	12 mm	9-11 mm
Color	Grey/Customized	Grey/Customized

Technical Data

Material Properties:

Material: Virgin PVC compound
Tensile Strength: ≥45 MPa
Flexural Strength: ≥75 MPa
Operating Temperature: -20°C to +60°C
Service Life: 50+ years
UV Resistance: Excellent with stabilizers

Installation Specifications:

Driving Method: Vibratory hammer recommended
Maximum Driving Depth: 12-15 meters
Joint Efficiency: 95%+ watertight seal
Soil Compatibility: All soil types except rocky conditions

Project Gallery & Applications

Our Double U Type PVC Sheet Piles Vinyl Sheet Piles excel in diverse applications including:

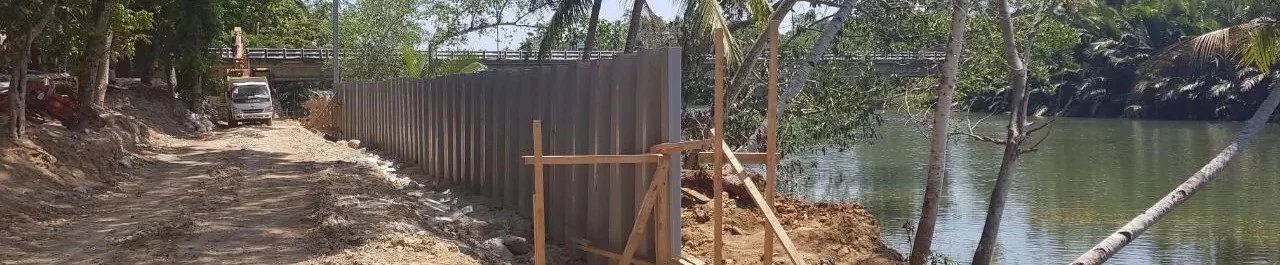

PVC SHEET

Marine & Waterfront Ventures: Seawalls, bulkheads, marina development, and coastal assurance where saltwater erosion resistance is critical.

Environmental Control: Landfill liners, sullied soil boundaries, and groundwater security frameworks requiring long-term chemical resistance.

Infrastructure Improvement: Transitory and lasting holding dividers for streets, railroads, and urban advancement projects.

Industrial Applications: Chemical plant control, wastewater treatment offices, and mechanical location preparation.

Why Choose Us

Proven Engineering Excellence: With over 40 years of foundation engineering experience and backing from Tianjin Xinyue Steel Group, we deliver reliable solutions worldwide.

Comprehensive Support: From initial design consultation to on-site technical support, our team ensures project success from start to finish.

Quality Assurance: Our "BUILD TO THE LAST" philosophy ensures every pile meets rigorous quality standards for maximum durability.

Global Reach: Universal workplaces and distribution centers empower quicker conveyance and localized benefit bolster for your projects.

Custom Arrangements: OEM capabilities and building skill permit us to customize arrangements for your particular extend requirements.

FAQ

Q: How do PVC sheet piles compare to steel alternatives?

A: PVC piles offer superior corrosion resistance, lighter weight for easier installation, and zero maintenance requirements. While initial costs may be higher, total lifecycle costs are typically lower.

Q: What's the maximum driving depth for your piles?

A: Standard installations reach 12-15 meters depth. For deeper applications, consult our engineering team for customized solutions.

Q: Can you give custom colors for building projects?

A: Yes, we offer RAL and Pantone color coordinating for ventures requiring particular stylish requirements.

Q: What's the anticipated benefit life?

A: Our items are planned for 50+ a long time of maintenance-free benefit in most environments.

Q: Do you give establishment guidance?

A: Completely. Our specialized group gives comprehensive establishment back and on-site direction when required.
