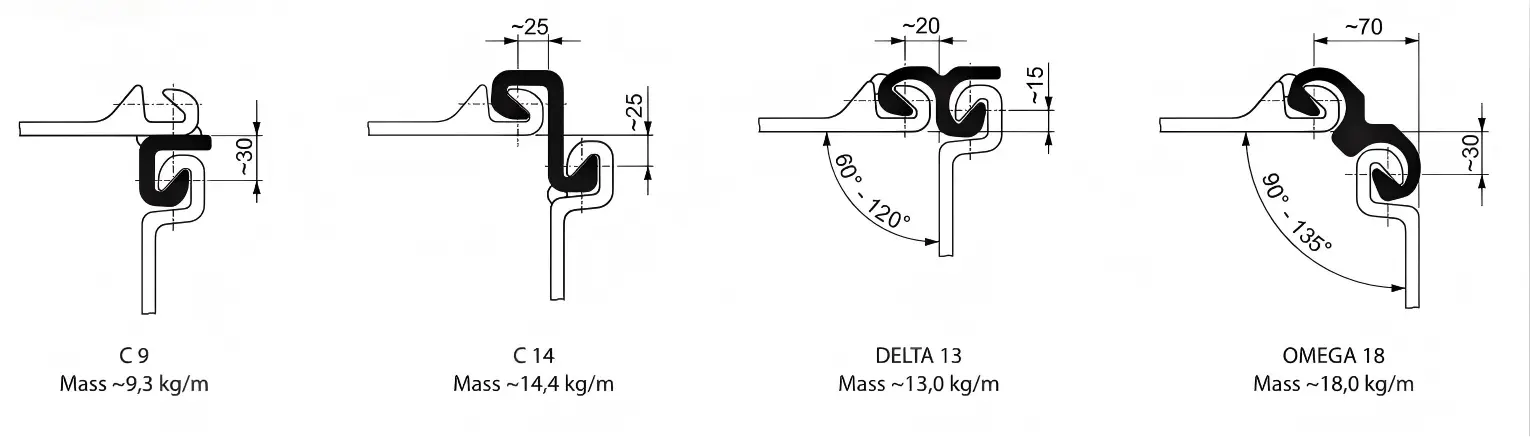

C9 Corner Sections

C9 Corner Sections - Professional Corner Sheet Pile Solutions

Looking for reliable corner reinforcement solutions for your sheet pile walls? C9 Corner Sections deliver exceptional structural continuity and corner stability for your foundation projects. These specialized corner sheet heaps guarantee watertight seals at basic 90° joints whereas disentangling your plan and establishment handle. Built with premium materials and designed for enduring execution, the items give the auxiliary astuteness you require for requesting development situations. Our corner sheet heap arrangements combine demonstrated building brilliance with cost-effective establishment methods.

Products Overview

Our corner sheet pile systems address the critical challenge of maintaining structural continuity at wall intersections. These engineered solutions eliminate weak points commonly found at corner connections in traditional sheet pile installations.

The items highlight precision-manufactured interlocks that make consistent associations with adjoining sheet heaps. The vigorous plan guarantees ideal stack conveyance over the whole corner assembly.​​​​​​​

Each corner area experiences thorough quality control testing to meet worldwide guidelines. Your ventures advantage from reliable dimensional precision and dependable execution characteristics.

We fabricate corner areas utilizing high-grade steel materials counting S355GP, S430GP, and S460GP grades. This fabric choice gives great strength-to-weight proportions and predominant erosion resistance.

Corner Sheet Pile Specification

​​​​​​​

Technical Data

Material Properties:

• Yield strength: 355-460 MPa (depending on grade selected)
• Tensile strength: 510-540 MPa
• Impact resistance: Charpy V-notch tested at -20°C
• Weldability: Excellent for field connections

Performance Characteristics:

• Corner angle tolerance: ±0.5°
• Interlock efficiency: 95% minimum
• Water tightness rating: Class A
• Service temperature range: -40°C to +80°C

Geometric Properties:

Your corner sections, including C9 Corner Sections, maintain precise dimensional control throughout manufacturing. Each piece features optimized section modulus for maximum bending resistance.

Project Gallery & Applications

Marine Infrastructure:

Harbor walls and quay structures benefit from enhanced corner stability. The watertight seal prevents soil migration and maintains structural integrity in marine environments.

Urban Development:

Basement excavations and underground parking structures rely on corner sections for reliable earth retention. These applications demand precise corner connections for safety compliance.

Industrial Facilities:

Storage tank foundations and industrial plant construction utilize corner sheet piles for permanent retention systems. The robust design handles heavy surcharge loads effectively.

Bridge Construction:

Abutment walls and approach structures incorporate corner sections for long-term stability. Transportation infrastructure requires proven performance under dynamic loading conditions.

Why Choose Us

Integrated Manufacturing Expertise

You benefit from our 40+ years of steel manufacturing experience through Tianjin Xinyue Steel Group. This heritage ensures consistent quality and reliable delivery schedules.

Comprehensive Solution Approach

Our turnkey services cover everything from material supply to on-site engineering support. You work with a single trusted partner throughout your project lifecycle.

Advanced Corrosion Protection

We provide galvanizing and specialized coating options to extend service life in challenging environments. Your investment stays protected against harsh conditions.

Global Support Network

Our international presence includes strategic warehouses and regional offices. You receive faster delivery times and localized technical support when needed.

BUILD TO THE LAST Philosophy

Every corner section reflects our commitment to long-term structural performance. Your projects benefit from engineering solutions designed for decades of reliable service.

FAQ

Q: What makes corner sheet piles essential for wall systems?

A: Corner connections represent the weakest points in traditional sheet pile walls. Our corner sections eliminate these vulnerabilities through engineered continuity and enhanced load distribution.

Q: How do you ensure proper alignment during installation?

A: Each section includes precision-manufactured guide features and interlock systems. These design elements maintain accurate positioning throughout the driving process.

Q: Can corner sections accommodate varying soil conditions?

A: Yes, our designs account for different soil types and loading conditions. The robust construction handles both cohesive and granular soil environments effectively.

Q: What coating options are available for marine applications?

A: We offer hot-dip galvanizing, epoxy coatings, and specialized marine-grade protection systems. These options extend service life in saltwater and aggressive environments.

Contact Us

Ready to strengthen your next project with reliable corner solutions, including C9 Corner Sections? Contact our technical team at sales@hypile.com to discuss your specific requirements and receive detailed engineering support for your application.
